Homelite Yard Trac 730
The Homelite Yard Trac 730 is a tractor produced by Homelite Lawn Tractors. It is equipped with a 245 cc 15 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: 4 forward and 1 reverse. Operating weight: 295 lbs 133 kg.
Engine Power
Gasoline (gross): 7 hp / 5.2 kW
Fuel & Capacities
0.5 gal
1.9 L
Transmission
4 forward and 1 reverse
Operating Weight
295 lbs
133 kg
Overview
 | 1969 - 1980
Model year 19691970-1980
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Homelite (a part of Textron) |
Lawn tractor | |
Homelite Yard Trac 730 Engine | |
|---|---|
7HP Lauson 245cc 1-cyl gasoline | |
Fuel tank | 0.5 gal
1.9 L |
Engine details ...  | |
Homelite Yard Trac 730 Transmission | |
|---|---|
4-speed friction drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 295 lbs
133 kg |
Front tire | 4.10/3.50x4 |
Rear tire | 4.80/4.00x8 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Model 730 published in 1969, by Homelite |
Engine
Engine Detail — 245 cc / 15 ci Gasoline
Manufacturer | Lauson |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 245 cc
15 ci |
Power (gross) | 7 hp
5.2 kW |
Air cleaner | dry |
Starter type | manual recoil |
Transmission
Transmission — 4 forward and 1 reverse friction drive
Type | friction drive |
Gears | 4 forward and 1 reverse |
Dimensions
Homelite Yard Trac 730 Tires | |
|---|---|
Lawn/turf front | 4.10/3.50x4 |
Lawn/turf rear | 4.80/4.00x8 |
16x6.50x8 | |
Dimensions | |
|---|---|
Weight | 295 lbs
133 kg |
Attachments
30" Mower deck | |
|---|---|
Type | mid-mount Homelite |
1-blade with manual lift | |
Cutting width | 30 inches
76 cm |
Cut height | 1.5 to 3.5 inch
3 to 8 cm |
Photos

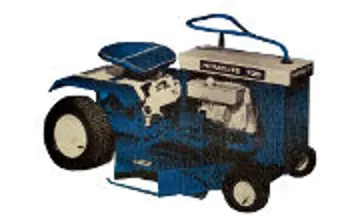

Homelite Yard Trac 730 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Homelite Lawn Tractors Homelite Yard Trac 730.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Homelite Lawn Tractors Homelite Yard Trac 730 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Homelite Lawn Tractors Homelite Yard Trac 730.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
