Huffy Belair 4845
The Huffy Belair 4845 is a tractor produced by Huffy Lawn Tractors. The rated power output is 5 hp 3.7 kW. Transmission: 1 forward and reverse. Operating weight: 187 lbs 84 kg.
Engine Power
5 hp
3.7 kW
Fuel & Capacities
Gasoline
Transmission
1 forward and reverse
Operating Weight
187 lbs
84 kg
Huffy Lawn Tractors Huffy Belair 4845 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1969
Riding lawn mower |
|---|---|
1969 | |
Riding lawn mower | |
1969 | |
|---|---|
Riding lawn mower |
Production | |
|---|---|
Manufacturer | Huffy |
Riding lawn mower | |
Original price was $350 in 1969 | |
Huffy Belair 4845 Engine | |
|---|---|
5HP Briggs & Stratton gasoline | |
Engine details ...  |
Huffy Belair 4845 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
None brakes | |
Open operator station | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 35.5 inches
90 cm |
Weight | 187 lbs
84 kg |
Front tire | 10.25x3.50 |
Rear tire | 13x5.00 |
Full dimensions and tires ...  | |
Engine
| 1969
Riding lawn mower |
|---|---|
1969 | |
Riding lawn mower | |
1969 | |
|---|---|
Riding lawn mower |
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | air-cooled |
Power | 5 hp
3.7 kW |
Starter type | manual recoil |
Transmission
| 1969
Riding lawn mower |
|---|---|
1969 | |
Riding lawn mower | |
1969 | |
|---|---|
Riding lawn mower |
Transmission — 1 forward and reverse gear
Type | gear |
Gears | 1 forward and reverse |
Dimensions
| 1969
Riding lawn mower |
|---|---|
1969 | |
Riding lawn mower | |
1969 | |
|---|---|
Riding lawn mower |
Huffy Belair 4845 Tires | |
|---|---|
Lawn/turf front | 10.25x3.50 |
Lawn/turf rear | 13x5.00 |
Dimensions | |
|---|---|
Wheelbase | 35.5 inches
90 cm |
Shipping weight | 187 lbs
84 kg |
Attachments
| 1969
Riding lawn mower |
|---|---|
1969 | |
Riding lawn mower | |
1969 | |
|---|---|
Riding lawn mower |
24" Mower deck | |
|---|---|
Type | mid-mount Huffy |
Cutting width | 24 inches
60 cm |
Cut height | 1.5 to 3 inch
3 to 7 cm |
Photos

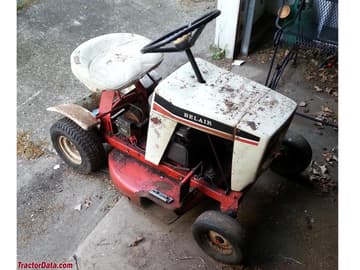

Huffy Belair 4845
Huffy Belair 4845
