Huffy Caprice 4828
The Huffy Caprice 4828 is a tractor produced by Huffy Lawn Tractors. The listed engine power is Gasoline (listed): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 262 lbs 118 kg.
Engine Power
Gasoline (listed): 7 hp / 5.2 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
262 lbs
118 kg
Overview
 | 1968 - 1969
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Huffy |
Lawn tractor | |
Huffy Caprice 4828 Engine | |
|---|---|
7HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
Huffy Caprice 4828 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Internal expanding brakes | |
Open operator station | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 262 lbs
118 kg |
Front tire | 11x4.00 |
Rear tire | 15x6.00 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Turfmaster published in 1968, by Huffman Manufacturing |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power | 7 hp
5.2 kW |
Starter type | manual recoil |
optional plug-in 110V electric starter |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
Huffy Caprice 4828 Tires | |
|---|---|
Lawn/turf front | 11x4.00 |
Lawn/turf rear | 15x6.00 |
Dimensions | |
|---|---|
Shipping weight | 262 lbs
118 kg |
Attachments
32" Mower deck | |
|---|---|
Type | mid-mount Huffy |
Cutting width | 32 inches
81 cm |
Cut height | 1.75 to 3.5 inch
4 to 8 cm |
Photos

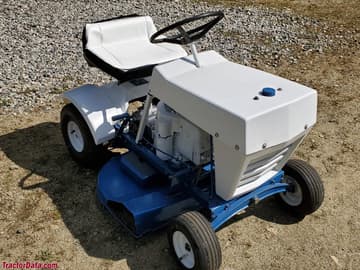

Huffy Caprice 4828
Huffy Caprice 4828
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Huffy Lawn Tractors Huffy Caprice 4828.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Huffy Lawn Tractors Huffy Caprice 4828 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Huffy Lawn Tractors Huffy Caprice 4828.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
