Huffy Fairlane 4842
The Huffy Fairlane 4842 is a tractor produced by Huffy Lawn Tractors. The listed engine power is Gasoline (gross): 3.5 hp / 2.6 kW. Transmission: 1 forward and reverse. Operating weight: 120 lbs 54 kg.
Engine Power
Gasoline (gross): 3.5 hp / 2.6 kW
Fuel & Capacities
Gasoline
Transmission
1 forward and reverse
Operating Weight
120 lbs
54 kg
Overview
 | 1967 - 1968
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Huffy |
Riding lawn mower | |
Original price was $145 in 1967 | |
Variants | |
|---|---|
Aero 2842 | Turfmaster model |
Huffy Fairlane 4842 Engine | |
|---|---|
3.5HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
Huffy Fairlane 4842 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
None brakes | |
Open operator station | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | continuous running |
Clutch | none |
Dimensions & Tires | |
|---|---|
Wheelbase | 34.25 inches
86 cm |
Weight | 120 lbs
54 kg |
Front tire | 8x2.25 |
Rear tire | 10x2.75 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Huffy Outdoor Power Equipment published in 1967, by Huffman Manufacturing | |
Turfmaster published in 1967, by Huffman Manufacturing | |
Turfmaster published in 1968, by Huffman Manufacturing |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 3.5 hp
2.6 kW |
Starter type | manual recoil |
Transmission
Transmission — 1 forward and reverse gear
Type | gear |
Gears | 1 forward and reverse |
Dimensions
Huffy Fairlane 4842 Tires | |
|---|---|
Lawn/turf front | 8x2.25 |
Lawn/turf rear | 10x2.75 |
Dimensions | |
|---|---|
Wheelbase | 34.25 inches
86 cm |
Weight | 120 lbs
54 kg |
Attachments
24" Mower deck | |
|---|---|
Type | mid-mount Huffy |
Cutting width | 24 inches
60 cm |
Cut height | 2 to 2.75 inch
5 to 6 cm |
Photos

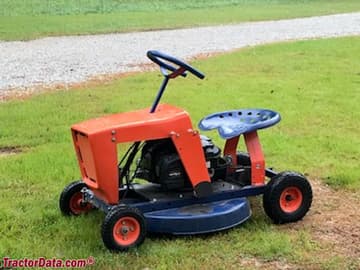

Huffy Fairlane 4842 lawn tractor.
Huffy Fairlane 4842 lawn tractor, rear view.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Huffy Lawn Tractors Huffy Fairlane 4842.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Huffy Lawn Tractors Huffy Fairlane 4842 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Huffy Lawn Tractors Huffy Fairlane 4842.
Converted Equivalents:
Horsepower (HP)3.5 hp
Kilowatts (kW)2.6 kW
Metric Horsepower (PS / CV)3.5 PS
