Ingersoll 3010
The Ingersoll 3010 is a tractor produced by Ingersoll Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The rated power output is 10 hp 7.5 kW. Transmission: Hy-Drive. Operating weight: 605 lbs 274 kg.
Engine Power
10 hp
7.5 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
Hy-Drive
Operating Weight
605 lbs
274 kg
Ingersoll Lawn Tractors Ingersoll 3010 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

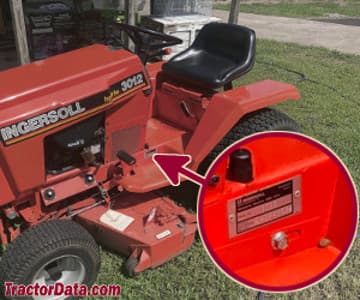

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1989
3000 SeriesGarden tractor |
|---|---|
1989 | |
3000 Series | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | Ingersoll |
Garden tractor | |
Built in Winneconne, Wisconsin, USA | |
Ingersoll 3010 Engine | |
|---|---|
10HP Kohler 391cc 1-cyl gasoline | |
Engine details ...  |
Ingersoll 3010 Transmission | |
|---|---|
hydraulic drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Capacity | |
|---|---|
Fuel | 3 gal
11.4 L |
Hydraulic system | 1.5 gal
5.7 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 1.5 gal
5.7 L |
Pressure | 2000 psi (transmission)
137.9 bar |
575 psi (lift)
39.6 bar | |
Valves | 2 |
Pump flow | 8 gpm
30.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Type | sleeve hitch OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 605 lbs
274 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 230 |
Battery volts | 12 |
Battery AH | 32 |
References | |
|---|---|
 | |
Compact Tractors 3010, 3012, 3014, 4014 (8-55970) published in 1989 |
Engine
Engine Detail — 391 cc / 23.9 ci Gasoline
Manufacturer | Kohler M10AQS |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 391 cc
23.9 ci |
Bore/Stroke | 3.25x2.875 inches
83 x 73 mm |
Power (gross) | 10 hp
7.5 kW |
Compression | 6.2:1 |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Sparkplug | Champion RH10 |
Sparkplug gap | 0.035 inches
0.889 mm |
Intake valve clearance | 0.009 inches (cold)
0.229 mm |
Exhaust valve clearance | 0.018 inches (cold)
0.457 mm |
Transmission
Transmission — Hy-Drive
Transmission | Hy-Drive |
Type | hydraulic drive |
Gears | infinite forward and reverse (2-range) |
 | |
Dimensions
Ingersoll 3010 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 65 inches
165 cm |
Width | 37 inches
93 cm |
Height (steering wheel) | 40 inches
101 cm |
Height (hood) | 35.5 inches
90 cm |
Weight | 605 lbs
274 kg |
Clearance (rear axle) | 7.125 inches
18 cm |
Front tread | 28.75 inches
73 cm |
Rear tread | 27.75 inches
70 cm |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
42" mid-mount mower deck | |
44" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
