International Harvester 10-20 Titan

The International Harvester 10-20 Titan is a tractor produced by International Harvester. It is equipped with a 530.9 ci 8.7 L engine. Transmission: 2 forward and 1 reverse. Operating weight: 5525 lbs 2506 kg.

Fuel & Capacities
Kerosene
Transmission
2 forward and 1 reverse
Operating Weight
5525 lbs 2506 kg

International Harvester 10-20 Titan Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

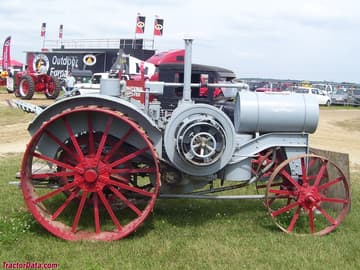

International Harvester 10-20 Titan tractor photo
1915 - 1920 Standard-tread tractor
1915 - 1920
Standard-tread tractor
Production
Manufacturer
International Harvester
Standard-tread tractor
Built in Milwaukee, Wisconsin, USA
International Harvester 10-20 Engine
International Harvester 8.7L 2-cyl kerosene
Engine details ...
International Harvester 10-20 Transmission
2-speed gear
Transmission details ...
International Harvester 10-20 Power
Drawbar (claimed)
10 hp 7.5 kW
Belt (claimed)
20 hp 14.9 kW
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Dimensions & Tires
Wheelbase
91 inches 231 cm
Weight
5525 lbs 2506 kg
Front tire
36x6
Rear tire
54x10
Full dimensions and tires ...
References
10-20 Titan references literature
10-20 H.P. Kerosene Tractor published in 1919, by International Harvester
Instruction Book Titan 10-20 H.P. Kerosene Tractor
Choose With Care = Choose a Titan published in 1916, by International Harvester

Engine

Engine Detail — 530.9 ci / 8.7 L Kerosene

Manufacturer
International Harvester
Fuel Type
Kerosene
Configuration
2-cylinder, liquid-cooled horizontal valve-in-head
Displacement
530.9 ci 8.7 L
Bore/Stroke
6.50x8.00 inches 165 x 203 mm
Rated RPM
575
Starter type
hand-crank
Coolant capacity
160 qts 151.4 L

Transmission

Transmission — 2 forward and 1 reverse gear

Type
gear
Gears
2 forward and 1 reverse
Oil capacity
12 qts 11.4 L
Oil type
600W
10-20 Titan gear speeds
600W

Dimensions

International Harvester 10-20 Tires
Ag front
36x6 steel
Ag rear
54x10 steel
Dimensions
Wheelbase
91 inches 231 cm
Length
147 inches 373 cm
Width
60 inches 152 cm
Height
66.75 inches 169 cm
Weight
5525 lbs 2506 kg

Photos

International Harvester 10-20 Titan

International Harvester 10-20 Titan

International Harvester 10-20 Titan

International Harvester 10-20 Titan

Titan 10-20 operator station and controls.

Titan 10-20 operator station and controls.

Starting an International Titan 10-20.

Starting an International Titan 10-20.

Titan 10-20 with plow.

Titan 10-20 with plow.

Titan 10-20 with plow.

Titan 10-20 with plow.

Titan 10-20 with plow.

Titan 10-20 with plow.

Titan 10-20 with plow.

Titan 10-20 with plow.
