International Harvester Cub 154 Lo-Boy

The International Harvester Cub 154 Lo-Boy is a tractor produced by International Harvester. It is equipped with a 59.5 ci 1.0 L engine. Transmission: 6 forward and 2 reverse. Operating weight: 1480 lbs 671 kg.

Overview

	1968 - 1974 Compact Utility tractor
1968 - 1974
Compact Utility tractor

Production
Manufacturer	International Harvester
Compact Utility tractor
Built in Louisville, Kentucky, USA
Original price	$2,400 (1974)

International Harvester 154 Lo-Boy Engine
International Harvester 1.0L 4-cyl gasoline
Engine details ...

International Harvester 154 Lo-Boy Power
PTO (claimed)	14 hp 10.4 kW

Mechanical
Two-wheel drive
Steering	manual
Mechanical drum brakes
Open operator station.

Capacity
Fuel	8 gal 30.3 L
Hydraulic system	1.75 gal 6.6 L

Hydraulics
Type	gear pump
Capacity	1.75 gal 6.6 L
Pressure	2000 psi 137.9 bar
Pump flow	2 gpm 7.6 lpm

Tractor hitch
Rear Type	I (optional)

Power Take-off (PTO)
Rear PTO	independent
Clutch	mechanical dry disc
Rear PTO Type	1600 (counter-clockwise)

Dimensions & Tires
Wheelbase	64 inches 162 cm
Weight	1480 lbs 671 kg
Front tire	4.00-12
Rear tire	8.3-24
Full dimensions and tires ...

Links
McCormick-Deering Farmall Cub:

Electrical
Ground	negative
Charging amps	12, 15 (generator)
Battery volts	12

References
Meet your exact needs form one souce published in 1970, by International Harvester
Buyer's Guide 1974 published by International Harvester
Spring 1969 Buyer's Guide published by International Harvester
Spring 1970 Buyer's Guide published by International Harvester
Spring 1971 Buyer's Guide published by International Harvester

Engine

Engine Detail — 59.5 ci / 1.0 L Gasoline

Manufacturer	International Harvester C60
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	59.5 ci 1.0 L
Bore/Stroke	2.625x2.75 inches 67 x 70 mm
Fuel system	International 0.75 updraft carburetor
Compression	7.5:1
Rated RPM	2200
Firing order	1-3-4-2
Starter volts	12
Oil capacity	3 qts 2.8 L
Coolant capacity	9.75 qts 9.2 L
Sparkplug gap	0.023 inches 0.584 mm

Transmission

Transmission options
3-speed unsynchronized gear
6-speed creeper

Transmission — 3 forward and 1 reverse unsynchronized gear

Type	unsynchronized gear
Gears	3 forward and 1 reverse
Clutch	mechanical dry disc
Oil capacity	7 qts 6.6 L

Transmission — 6 forward and 2 reverse creeper

Type	creeper
Gears	6 forward and 2 reverse
Optional creeper range for the standard transmission.

Dimensions

International Harvester 154 Lo-Boy Tires
Ag front	4.00-12
Ag rear	8.3-24
Ag rear	9.5-24
Lawn/turf front	20x8.00-10
Lawn/turf rear	13.6-16
	12.4-16

Dimensions
Wheelbase	64 inches 162 cm
Length	94 inches 238 cm
Width	52 inches 132 cm
Height	49 inches 124 cm
Weight	1480 lbs 671 kg
Ground clearance	13 inches 33 cm
Front tread	42 inches 106 cm
Rear tread	42 inches 106 cm

Photos

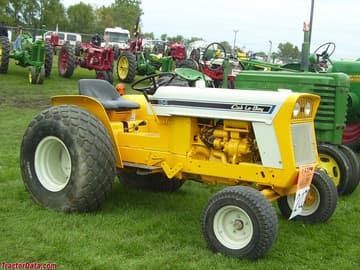

International Harvester Cub 154 Lo-Boy

International Harvester Cub 154 Lo-Boy

Cub Lo-Boy 154 operator station and controls.
