International Harvester Cub 185 Lo-Boy
The International Harvester Cub 185 Lo-Boy is a tractor produced by International Harvester. It is equipped with a 59.5 ci 1.0 L engine. Transmission: 6 forward and 2 reverse. Operating weight: 1497 lbs 679 kg.
Fuel & Capacities
8 gal
30.3 L
Transmission
6 forward and 2 reverse
Operating Weight
1497 lbs
679 kg
International Harvester Cub 185 Lo-Boy Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

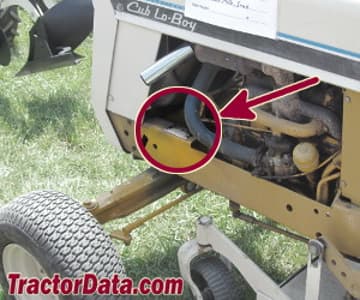

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1974 - 1976
Compact Utility tractor |
|---|---|
1974 - 1976 | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | International Harvester |
Compact Utility tractor | |
Built in Louisville, Kentucky, USA | |
Original price was $4,300 in 1976 | |
International Harvester 185 Lo-Boy Engine | |
|---|---|
International Harvester 1.0L 4-cyl gasoline | |
Engine details ...  |
International Harvester 185 Lo-Boy Power | |
|---|---|
PTO (claimed) | 14 hp
10.4 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical drum brakes | |
Open operator station. |
Capacity | |
|---|---|
Fuel | 8 gal
30.3 L |
Hydraulic system | 1.75 gal
6.6 L |
Hydraulics | |
|---|---|
Type | gear pump |
Capacity | 1.75 gal
6.6 L |
Pressure | 2000 psi
137.9 bar |
Pump flow | 2 gpm
7.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | I (optional) |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | mechanical dry disc |
Rear PTO Type | 1600 (counter-clockwise) |
Dimensions & Tires | |
|---|---|
Wheelbase | 64 inches
162 cm |
Weight | 1497 lbs
679 kg |
Front tire | 4.00-12 |
Rear tire | 8.3-24 |
Full dimensions and tires ...  | |
Links | |
|---|---|
McCormick-Deering Farmall Cub: |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 12 |
15 (generator) | |
Battery volts | 12 |
Engine
Engine Detail — 59.5 ci / 1.0 L Gasoline
Manufacturer | International Harvester C60 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 59.5 ci
1.0 L |
Bore/Stroke | 2.625x2.75 inches
67 x 70 mm |
Fuel system | Zenith 68YY7 carburetor |
Compression | 7.5:1 |
Rated RPM | 2300 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Oil capacity | 3 qts
2.8 L |
Coolant capacity | 9.75 qts
9.2 L |
Sparkplug gap | 0.023 inches
0.584 mm |
Transmission
Transmission options | |
|---|---|
3-speed unsynchronized gear | |
6-speed creeper |
Transmission — 3 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 3 forward and 1 reverse |
Clutch | mechanical dry disc |
Oil capacity | 7 qts
6.6 L |
 | |
Transmission — 6 forward and 2 reverse creeper
Type | creeper |
Gears | 6 forward and 2 reverse |
Optional creeper range for the standard transmission. | |
Dimensions
International Harvester 185 Lo-Boy Tires | |
|---|---|
Ag front | 4.00-12 |
Ag rear | 8.3-24 |
Ag rear | 9.5x24 |
Lawn/turf front | 20x8.00-10 |
Lawn/turf rear | 13.6-16 |
12.4-16 | |
Dimensions | |
|---|---|
Wheelbase | 64 inches
162 cm |
Length | 94 inches
238 cm |
Width | 52 inches
132 cm |
Height | 49 inches
124 cm |
Weight | 1497 lbs
679 kg |
Ground clearance | 13 inches
33 cm |
Front tread | 42 inches
106 cm |
Rear tread | 42 inches
106 cm |
Photos

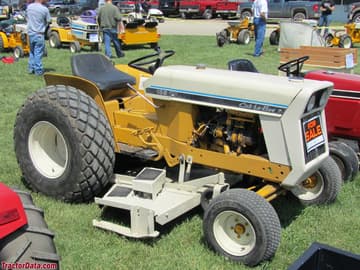

International Harvester Cub 185 Lo-Boy
Cub Lo-Boy 185 operator station and controls.
