International Harvester 4156

The International Harvester 4156 is a tractor produced by International Harvester. It is equipped with a 429 ci 7.0 L engine. Transmission: 8 forward and 4 reverse. Drive type: 4x4 4WD. Operating weight: 13,800 lbs 6259 kg.

Overview

	1969 - 1970 Four-wheel Drive (4WD) tractor
1969 - 1970
Four-wheel Drive (4WD) tractor

Production
Manufacturer	International Harvester
Four-wheel Drive (4WD) tractor
Total built	218
Original price	$21,500 (1970)

International Harvester 4156 Engine
International Harvester 7.0L 6-cyl diesel
Fuel tank	100 gal 378.5 L
Engine details ...

International Harvester 4156 Transmission
8-speed
Transmission details ...

International Harvester 4156 Power
Drawbar (claimed)	125 hp 93.2 kW
PTO (claimed)	140 hp 104.4 kW

Mechanical
Drive	4x4 4WD
Steering	Hydrostatic power, 2- or 4-wheel
Hydraulic drum brakes
Cab optional with heat and A/C

Hydraulics
Valves	0 to 3
Pump flow	17.5 gpm 66.2 lpm
	25.5 gpm (optional) 96.5 lpm
Total flow	27.1 gpm 102.6 lpm
Steering flow	9.6 gpm (front) 36.3 lpm
	21.5 gpm (rear) 81.4 lpm
	29.5 gpm (optional rear) 111.7 lpm
Steering press.	2000 psi 137.9 bar

Tractor hitch
Rear Type	2/3

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	102 inches 259 cm
Weight	13,800 lbs 6259 kg
Front tire	23.1-26
Rear tire	23.1-26
Full dimensions and tires ...

References
Spring 1969 Buyer's Guide published by International Harvester
Spring 1970 Buyer's Guide published by International Harvester
Spring 1971 Buyer's Guide published by International Harvester
International 4156 published in 1969, by International Harvester
Farm Equipment Reference Catalog published in 1968, by International Harvester

Engine

Engine Detail — 429 ci / 7.0 L Diesel

Manufacturer	International Harvester
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	429 ci 7.0 L
Bore/Stroke	4.50x4.50 inches 114 x 114 mm
Compression	16:1
Rated RPM	2400
Oil capacity	21 qts 19.9 L
Coolant capacity	37 qts 35.0 L

Transmission

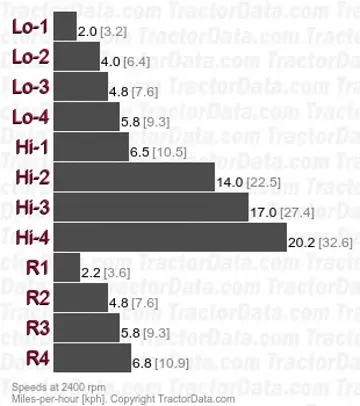

Transmission — 8 forward and 4 reverse

Gears	8 forward and 4 reverse
Oil capacity	50 qts 47.3 L
With 18.4-30 tires.

Dimensions

International Harvester 4156 Tires
Ag front	23.1-26
Ag rear	23.1-26
Ag front	28.1-26
Ag rear	28.1-26

Dimensions
Wheelbase	102 inches 259 cm
Length	194 inches 492 cm
Width	95.75 inches 243 cm
Height (steering wheel)	93 inches 236 cm
Height (exhaust)	140 inches 355 cm
Shipping weight	13,800 lbs 6259 kg
Ballasted weight	20,400 lbs 9253 kg
Ground clearance	17 inches 43 cm

Photos

International Harvester 4156
