International Harvester 624

1965 - 1972

Utility tractor

Manufacturer

International Harvester

Utility tractor

Built in Neuss, Germany

International Harvester 3.4L 4-cyl diesel

Fuel tank

18.5 gal 70.0 L

Engine

58 hp 43.3 kW

Two- or four-wheel drive

Differential lock

foot-operated

Disc brakes

Open operator station.

Pump flow

7.5 gpm 28.4 lpm

Rear Type

II/I

Control

position and draft control

Rear lift

3748 lbs 1700 kg

Rear PTO

independent

Rear PTO Type

540/1000

Wheelbase

83.5 inches 212 cm

Weight

5732 to 6592 pounds

Front tire

7.50-16

Rear tire

13-30 (2WD)

Charging system

Bosch generator

Charging amps

11

16

Battery volts

12

World Wide Farm Equipment Buyer's Guide published in 1968, by International Harvester*

624-724-824

624 published in 1969, by International Harvester

*Publication contains known errors.

Manufacturer

International Harvester D-206

Fuel Type

Diesel

Configuration

4-cylinder, liquid-cooled

Displacement

206.4 ci 3.4 L

Bore/Stroke

3.875x4.38 inches 98 x 111 mm

Power

58 hp 43.3 kW

Fuel system

direct injection

Compression

16:1

Rated RPM

2100

Idle RPM

650-2310

Torque

147 lb-ft 199.3 Nm

Torque RPM

1600

Firing order

1-3-4-2

Starter volts

12

Coolant capacity

16.4 qts 15.5 L

Intake valve clearance

0.010 inches 0.254 mm

Exhaust valve clearance

0.012 inches 0.305 mm

Oil capacity

9 qts 8.5 L

Oil change

200 h

8-speed

12-speed partial power shift

Transmission

partially synchronized

Gears

8 forward and 4 reverse

Oil capacity

45.2 qts 42.8 L

Four gears (1-4) in high, low, and reverse ranges. Gear shifting is synchronized using the clutch. Tractor must be stoppped to shift range.

With 16.9x30 rear tires.

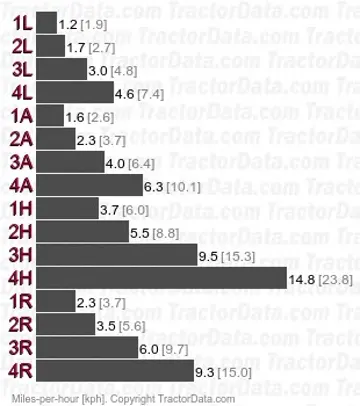

Transmission

Agriomatic S

Type

partial power shift

Gears

12 forward and 4 reverse

Oil capacity

40 qts 37.9 L

The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle.

With 16.9x30 rear tires.

Standard tires (ag)

Front: 7.50-16. Rear: 13-30 (2WD)

Front: 10-24. Rear: 14-34 (4WD)

Ag rear

11-36

12-36

14-30

14-34

Wheelbase

83.5 inches 212 cm

Length

131.6 inches 334 cm

Width

71.5 inches 181 cm

Height (steering wheel)

62 inches 157 cm

2WD Weight

5732 lbs 2600 kg

4WD Weight

6592 lbs 2990 kg

Ground clearance

16 inches 40 cm

Front tread

52 to 67.75 inches 132 to 172 cm

Rear tread

55.9 to 71.7 inches 141 to 182 cm
