International Harvester 724

1969 - 1974

Model year 1969-19721972-1974

Utility tractor

Manufacturer

International Harvester

Utility tractor

Built in Neuss, Germany

International Harvester 3.9L 4-cyl diesel

Fuel tank

18.5 gal 70.0 L

Engine

67 hp 50.0 kW

Two- or four-wheel drive

Manual steering

Dry disc brakes

Open operator station.

Pump flow

7.5 gpm 28.4 lpm

Rear Type

II

Control

position and draft control

Rear lift

4520 lbs 2050 kg

Rear PTO

independent

Rear PTO Type

540/1000

Wheelbase

83.5 inches 212 cm

Weight

6262 to 6626 pounds

Front tire

7.50-16

2WD Rear tire

13.6-38

624-724-824

Manufacturer

International Harvester D-239

Fuel Type

Diesel

Configuration

4-cylinder, liquid-cooled

Displacement

238.65 ci 3.9 L

Bore/Stroke

3.875x5.06 inches 98 x 129 mm

Power

67 hp 50.0 kW

Fuel system

direct injection

Compression

16:1

Rated RPM

2200

Idle RPM

650-2420

Torque

165 lb-ft 223.7 Nm

Torque RPM

1600

Firing order

1-3-4-2

Intake valve clearance

0.010 inches 0.254 mm

Exhaust valve clearance

0.012 inches 0.305 mm

Oil capacity

8.4 qts 7.9 L

Oil change

200 h

8-speed

12-speed partial power shift

Transmission

partially synchronized

Gears

8 forward and 4 reverse

Four gears (1-4) in high, low, and reverse ranges. Gear shifting is synchronized using the clutch. Tractor must be stoppped to shift range.

With 11-36 rear tires.

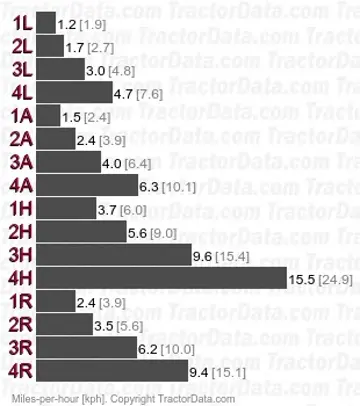

Transmission

Agriomatic S

Type

partial power shift

Gears

12 forward and 4 reverse

The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle.

With 11-36 rear tires.

2WD Standard tires (ag)

Front: 7.50-16. Rear: 13.6-38

4WD Standard tires (ag)

Front: 11.2-24. Rear: 13.6-38

Wheelbase

83.5 inches 212 cm

Length

131.6 inches 334 cm

Width

71.5 inches 181 cm

Height

62 inches 157 cm

2WD Weight

6262 lbs 2840 kg

4WD Weight

6626 lbs 3005 kg

Ground clearance

17.2 inches 43 cm

Front tread

52 to 67.75 inches 132 to 172 cm

Rear tread

57.5 to 73.5 inches 146 to 186 cm
