International Harvester Mogul 15-30

The International Harvester Mogul 15-30 is a tractor produced by International Harvester. Transmission: 1 forward and reverse. Operating weight: 15400 lbs 6985 kg.

Fuel & Capacities

45 gal 170.3 L

Transmission

1 forward and reverse

Operating Weight

15400 lbs 6985 kg

Overview

	1913 - 1915 Standard-tread tractor

Production
Manufacturer	International Harvester
Standard-tread tractor
Built in Chicago, Illinois, USA
Total built	528

International Harvester Mogul 15-30 Engine
International Harvester 1-cyl kerosene
Fuel tank	45 gal 170.3 L
Engine details ...

International Harvester Mogul 15-30 Transmission
1-speed
Transmission details ...

International Harvester Mogul 15-30 Power
Drawbar (claimed)	15 hp 11.2 kW
Belt (claimed)	30 hp 22.4 kW

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open station with steel canopy.

Dimensions & Tires
Weight	15400 lbs 6985 kg
Front tire	44x10
Rear tire	73x24
Full dimensions and tires ...

Belt Pulley
Diameter	28 inches 71 cm
Width	11 inches 27 cm

References

Mogul Oil Tractors published by International Harvester

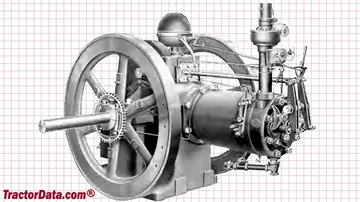

Engine

Engine Detail — Kerosene

Manufacturer	International Harvester
Fuel Type	Kerosene
Configuration	1-cylinder, liquid-cooled
Rated RPM	380
Starter type	gas pony motor OptOptional

International Harvester Mogul 15-30 Engine

Transmission

Transmission — 1 forward and reverse

Gears

1 forward and reverse

Dimensions

International Harvester Mogul 15-30 Tires
Ag front	44x10 (steel)
Ag rear	73x24 (steel)

Dimensions
Length	208 inches 528 cm
Width	103 inches 261 cm
Height	119 inches 302 cm
Weight	15400 lbs 6985 kg

Photos

International Mogul 15-30 in north-central Kansas.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for International Harvester Mogul 15-30.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
