Iseki TA410

The Iseki TA410 is a tractor produced by Iseki. It is equipped with a 136.5 ci 2.2 L engine. The listed engine power is Diesel (listed): 40.4 hp / 30.1 kW. Transmission: 16 forward and reverse. Operating weight: 3847 to 4244 pounds.

Engine Power
Diesel (listed): 40.4 hp / 30.1 kW
Fuel & Capacities
13.5 gal 51.1 L
Transmission
16 forward and reverse
Operating Weight
3847 to 4244 pounds

Overview

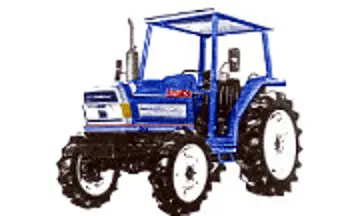

Iseki TA410 tractor photo
1985 - 1987 Landleader TA0 SeriesCompact Utility tractor Landleader TA0 Series Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Iseki TA410 Engine
Isuzu 2.2L 4-cyl diesel
Fuel tank
13.5 gal 51.1 L
Engine details ...
Iseki TA410 Transmission
16-speed
Transmission details ...
Iseki TA410 Power
Engine
40.4 hp 30.1 kW
Mechanical
Two- or four-wheel drive
Four-post ROPS. Cab optional.
Tractor hitch
Rear Type
JIS1
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Engine RPM
565@2500
677@2500
821@2500
1270@2500
Dimensions & Tires
Wheelbase
77.6 inches 197 cm
Weight
3847 to 4244 pounds
Front tire
6.00-16
2WD Rear tire
13.6-28
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
TA410 references literature
Landleader 340 - 370 - 410 - 450 published in 1986, by Iseki

Engine

Engine Detail — 136.5 ci / 2.2 L Diesel

Manufacturer
Isuzu 4JC1
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
136.5 ci 2.2 L
Bore/Stroke
3.465x3.622 inches 88 x 92 mm
Power
40.4 hp 30.1 kW
Rated RPM
2500
Starter
electric
Starter volts
12

Transmission

Transmission — 16 forward and reverse

Gears
16 forward and reverse

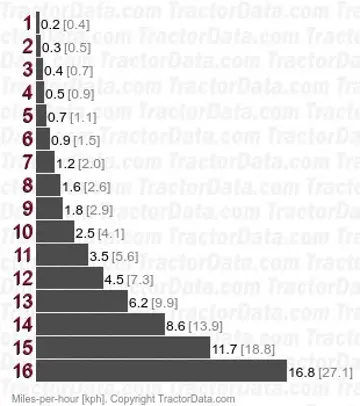

TA410   speeds

Dimensions

Iseki TA410 Tires
2WD Standard tires (ag)
Front: 6.00-16. Rear: 13.6-28
4WD Standard tires (ag)
Front: 8-18. Rear: 13.6-28
Dimensions
Wheelbase
77.6 inches 197 cm
Length
134.3 inches 341 cm
Width
61.4 inches 155 cm
Height
86.4 inches 219 cm
2WD Weight
3847 lbs 1744 kg
4WD Weight
4244 lbs 1925 kg
Ground clearance
14.4 inches 36 cm
2WD Front tread
45.5 to 61 inches 115 to 154 cm
4WD Front tread
48 inches 121 cm
Rear tread
48 to 63.8 inches 121 to 162 cm

Photos

Iseki TA410 tractor photo

Iseki TA410 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki TA410 based on its 40.4 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TA410.

Estimated Continuous Field Runtime: 6.4 hrs

Approximately 6.4 hours of continuous field operation at ~75% rated power on a full tank (13.5 gal / 51.1 L).

Estimated 75% Load Fuel Burn~2.1 gal/hr (8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki TA410 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TA410.

Converted Equivalents:

Horsepower (HP)40.4 hp
Kilowatts (kW)30.1 kW
Metric Horsepower (PS / CV)41 PS
