Iseki TU145

The Iseki TU145 is a tractor produced by Iseki. It is equipped with a 51.8 ci 0.8 L engine. The rated power output is 14.3 hp 10.7 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1345 to 1433 pounds.

Overview

	1986 - 1990 Landhope TU5 SeriesCompact Utility tractor
1986 - 1990
Landhope TU5 Series
Compact Utility tractor

1986 - 1990
Landhope TU5 Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TU145F	4WD

Iseki TU145 Engine
Mitsubishi 0.8L 3-cyl diesel
Fuel tank	4 gal 15.1 L
Engine details ...

Iseki TU145 Transmission
6-speed gear
Transmission details ...

Iseki TU145 Power
Engine	14.3 hp 10.7 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Photos
Iseki TU145 photos...

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	541@2500
	735@2500
	1138@2500

Dimensions & Tires
Wheelbase	49.6 inches 125 cm
Weight	1345 to 1433 pounds
Front tire	4.50-10
2WD Rear tire	8-16
Full dimensions and tires ...

References
Landhope TU125F-s TU145 F-S published by Iseki
Landhope 145 155 165 175 published by Iseki
Landhope 145 155 165 175 (1575-913-001-3D)

Engine

	1986 - 1990 Landhope TU5 SeriesCompact Utility tractor
1986 - 1990
Landhope TU5 Series
Compact Utility tractor

1986 - 1990
Landhope TU5 Series
Compact Utility tractor

Engine Detail
Mitsubishi K3B
diesel
3-cylinder
liquid-cooled
Displacement	51.8 ci 0.8 L
Bore/Stroke	2.67x3.07 inches 68 x 78 mm
Power	14.3 hp 10.7 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

	1986 - 1990 Landhope TU5 SeriesCompact Utility tractor
1986 - 1990
Landhope TU5 Series
Compact Utility tractor

1986 - 1990
Landhope TU5 Series
Compact Utility tractor

Transmission
Type	gear
Gears	6 forward and 2 reverse

Speeds

Dimensions

	1986 - 1990 Landhope TU5 SeriesCompact Utility tractor
1986 - 1990
Landhope TU5 Series
Compact Utility tractor

1986 - 1990
Landhope TU5 Series
Compact Utility tractor

Iseki TU145 Tires
2WD Standard tires (ag)	Front: 4.50-10. Rear: 8-16
4WD Standard tires (ag)	Front: 5.00-12. Rear: 8-16

Dimensions
Wheelbase	49.6 inches 125 cm
Length	85.4 inches 216 cm
Width	40.9 inches 103 cm
Height	52 inches 132 cm
2WD Weight	1345 lbs 610 kg
4WD Weight	1433 lbs 650 kg
Ground clearance	9.8 inches 24 cm
2WD Front tread	29.9 to 31.5 inches 75 to 80 cm
4WD Front tread	32.7 inches 83 cm
Rear tread	31.5 to 35.8 inches 80 to 90 cm

Photos

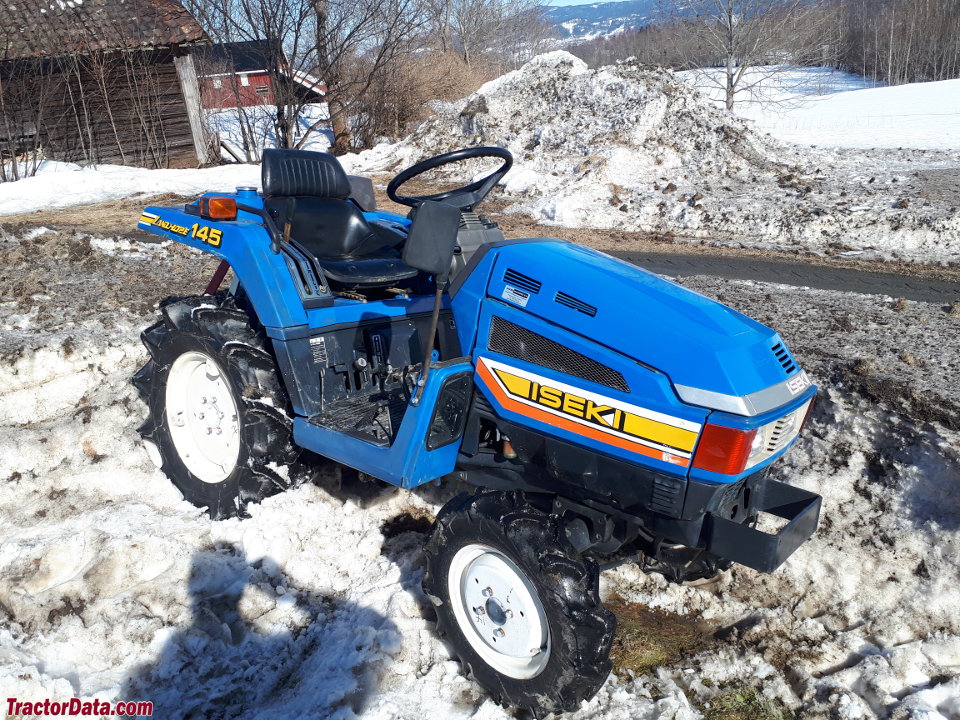

Iseki TU 145, right side.

Iseki TU 145, left side.
