Iseki TU1500

The Iseki TU1500 is a tractor produced by Iseki. It is equipped with a 51.8 ci 0.8 L engine. The listed engine power is Diesel (listed): 14.7 hp / 11.0 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1135 to 1224 pounds.

Engine Power
Diesel (listed): 14.7 hp / 11.0 kW
Fuel & Capacities
4.4 gal 16.7 L
Transmission
6 forward and 2 reverse
Operating Weight
1135 to 1224 pounds

Overview

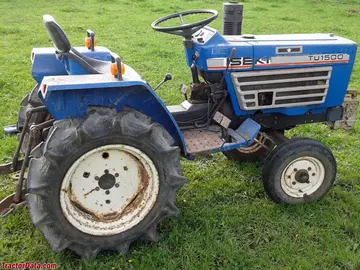

Iseki TU1500 tractor photo
1981 - 1984 TU SeriesCompact Utility tractor TU Series Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Built in Japan
Variants
TU1500F
4WD
Iseki TU1500 Engine
Mitsubihi 0.8L 3-cyl diesel
Fuel tank
4.4 gal 16.7 L
Engine details ...
Iseki TU1500 Transmission
6-speed gear
Transmission details ...
Iseki TU1500 Power
Engine
14.7 hp 11.0 kW
Mechanical
Two- or four-wheel drive
Open operator station.
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Engine RPM
513@2600
759@2600
1229@2600
Dimensions & Tires
Wheelbase
48.8 inches 123 cm
Weight
1135 to 1224 pounds
Front tire
4.50-10
2WD Rear tire
8-18
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
TU1500 references literature
TU 1400 1500 1600
TU published in 1984, by Iseki

Engine

Engine Detail — 51.8 ci / 0.8 L Diesel

Manufacturer
Mitsubihi K3B
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
51.8 ci 0.8 L
Bore/Stroke
2.67x3.07 inches 68 x 78 mm
Power
14.7 hp 11.0 kW
Rated RPM
2600
Torque
34.7 lb-ft 47.1 Nm
Torque RPM
1600
Starter
electric
Starter volts
12
Oil capacity
3.2 qts 3.0 L
Coolant capacity
5 qts 4.7 L

Transmission

Transmission — 6 forward and 2 reverse gear

Type
gear
Gears
6 forward and 2 reverse
Oil capacity
12.7 qts 12.0 L
TU1500  gear speeds

Dimensions

Iseki TU1500 Tires
2WD Standard tires (ag)
Front: 4.50-10. Rear: 8-18
4WD Standard tires (ag)
Front: 5.00-12. Rear: 8-18
Dimensions
Wheelbase
48.8 inches 123 cm
Length
83.9 inches 213 cm
Width
41 inches 104 cm
Height (exhaust)
66.9 inches 169 cm
2WD Weight
1135 lbs 514 kg
4WD Weight
1224 lbs 555 kg
2WD Ground clearance
13 inches 33 cm
4WD Ground clearance
10 inches 25 cm
2WD Front tread
27.6 inches 70 cm
4WD Front tread
30.3 inches 76 cm
Rear tread
31.5 to 35.9 inches 80 to 91 cm

Photos

Iseki TU1500

Iseki TU1500

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TU1500.

Estimated Continuous Field Runtime: 5.8 hrs

Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (4.4 gal / 16.7 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (2.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
