j i case lawn tractors 446
 | 1972 - 1988
Model year 1972-19761977-1988
400 SeriesGarden tractor | 1972 - 1988 | Model year 1972-19761977-1988 | 400 Series | Garden tractor |
|---|---|---|---|---|---|
1972 - 1988 | |||||
Model year 1972-19761977-1988 | |||||
400 Series | |||||
Garden tractor | |||||
1972 - 1988 | |
|---|---|
Model year 1972-19761977-1988 | |
400 Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | J.I. Case |
Garden tractor | |
Built in Winneconne, Wisconsin, USA | |
J.I. Case 446 Engine | |
|---|---|
16HP Onan 709cc 2-cyl gasoline | |
Engine details ...  |
J.I. Case 446 Transmission | |
|---|---|
hydraulic drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
J.I. Case 446 photos...  |
Capacity | |
|---|---|
Fuel | 3 gal
11.4 L |
Hydraulic system | 1.6 gal
6.1 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 1.6 gal
6.1 L |
Valves | 2 |
Pump flow | 8 gpm
30.3 lpm |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 770 lbs
349 kg |
Front tire | 6.50-8 |
Rear tire | 8.00-16 |
Full dimensions and tires ...  | |
J.I. Case 446 attachments | |
|---|---|
44" mid-mount mower deck | |
48" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |

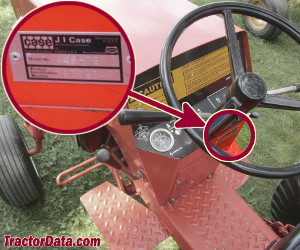

446 Serial Number Location | |
|---|---|
 | |
Serial number plate on instrument panel. |
446 Serial Numbers | |
|---|---|
1972 | 9668001 |
1973 | 9678031 |
1974 | 9694673 |
1975 | 9713265 |
1976 | 9727857 |
1977 | 9740617 |
1978 | 9754759 |
1979 | 9767590 |
1980 | 9785820 |
1981 | 14009950 |
1982 | 14025407 |
1983 | 14040936 |
1984 | 14060091 |
1985 | 14073621 |
1986 | 14095530 |
1987 | 14112151 |
1988 | 14112874 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
Battery AH | 24 |
References | |
|---|---|
 | |
Time-saving experts published in 1975, by J.I. Case |
