Jacobsen 1250 53276

The Jacobsen 1250 53276 is a tractor produced by Jacobsen Lawn Tractors. It is equipped with a 476 cc 29.07 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: infinite forward and infintie (2-range) reverse (2-range). Operating weight: 780 lbs 353 kg.

Engine Power
Gasoline (gross): 12 hp / 8.9 kW
Fuel & Capacities
3 gal 11.4 L
Transmission
infinite forward and infintie (2-range) reverse (2-range)
Operating Weight
780 lbs 353 kg

Overview

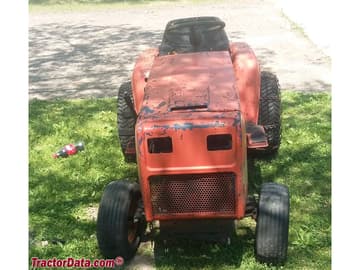

Jacobsen 1250 53276 tractor photo
1977 - 1980 1000 SeriesGarden tractor 1000 Series Garden tractor
Production
Manufacturer
Jacobsen (a part of Textron)
Garden tractor
Built in Racine, Wisconsin, USA
Original price was $2,800 in 1980
Jacobsen 1250 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank
3 gal 11.4 L
Engine details ...
Jacobsen 1250 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Tractor hitch
Rear Type
0 OptOptional
Type
sleeve hitch OptOptional
Power Take-off (PTO)
Rear PTO
independent OptOptional
Rear PTO Type
3300
Front PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
46 inches 116 cm
Weight
780 lbs 353 kg
Front tire
16x6.50-8
Rear tire
23x8.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
1250 53276 references literature
What type of tractor is right for you? published in 1977, by Jacobsen
Tractors engineered to do more. published in 1978, by Jacobsen

Engine

Engine Detail — 476 cc / 29.07 ci Gasoline

Manufacturer
Kohler K301AQS
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
476 cc 29.07 ci
Bore/Stroke
3.375x3.25 inches 86 x 83 mm
Power (gross)
12 hp 8.9 kW
Air cleaner
dry
Rated RPM
3600
Starter
electric
Starter volts
12
Oil capacity
1.5 qts 1.4 L

Transmission

Transmission — infinite forward and infintie (2-range) reverse (2-range) shaft-driven hydrostatic

Type
shaft-driven hydrostatic
Gears
infinite forward and infintie (2-range) reverse (2-range)
1250 53276 shaft-driven hydrostatic speeds

Dimensions

Jacobsen 1250 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x8.50-12
Dimensions
Wheelbase
46 inches 116 cm
Width
44 inches 111 cm
Height (steering wheel)
42 inches 106 cm
Height (hood)
37 inches 93 cm
Weight
780 lbs 353 kg
Clearance (front axle)
9.25 inches 23 cm
Clearance (rear axle)
8 inches 20 cm

Attachments

Attachment overview
42" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
