Jacobsen LT860 53146
The Jacobsen LT860 53146 is a tractor produced by Jacobsen Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: Peerless.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
Peerless
Overview
 | 1970 - 1976
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Jacobsen |
Lawn tractor | |
Built in Racine, Wisconsin, USA | |
The Jacobsen LT860 carried model codes 53145, 53146, and 53147. | |
Jacobsen LT860 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Jacobsen LT860 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 42.5 inches
107 cm |
Front tire | 13x5.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton 191707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power | 8 hp
6.0 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.125 qts
1.1 L |
Transmission
Transmission — Peerless
Transmission | Peerless |
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Jacobsen LT860 Tires | |
|---|---|
Lawn/turf front | 13x5.00-6 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 42.5 inches
107 cm |
Length | 57.75 inches
146 cm |
Width | 31.75 inches
80 cm |
Height (steering wheel) | 37 inches
93 cm |
Height (hood) | 31.25 inches
79 cm |
Clearance (front axle) | 7 inches
17 cm |
Clearance (rear axle) | 5.5 inches
13 cm |
Attachments
34" Mower deck | |
|---|---|
Type | mid-mount Jacobsen |
Cutting width | 34 inches
86 cm |
Photos

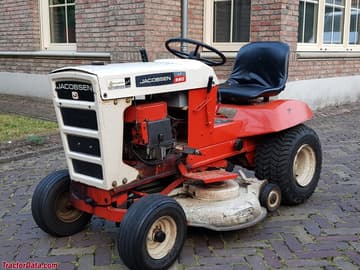

Jacobsen LT860 53146
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Jacobsen Lawn Tractors Jacobsen LT860 53146.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Jacobsen Lawn Tractors Jacobsen LT860 53146 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Jacobsen Lawn Tractors Jacobsen LT860 53146.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
