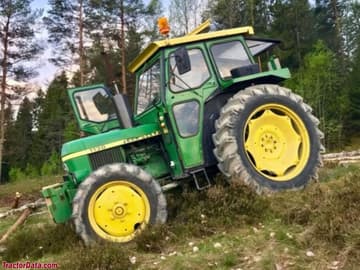

John Deere 1130

The John Deere 1130 is a tractor produced by John Deere. It is equipped with a 164 ci 2.7 L engine. The listed engine power is Diesel (net): 51 hp / 38.0 kW; Diesel (gross): 53.6 hp / 40.0 kW. Transmission: 16 forward and 8 reverse. Operating weight: 4780 lbs 2168 kg.

Overview

	1974 - 1979 Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 1130 Engine
John Deere 2.7L 3-cyl diesel
Engine details ...

John Deere 1130 Power
Engine (gross)	53.6 hp 40.0 kW
Engine (net)	51 hp 38.0 kW
PTO (claimed)	42.9 hp 32.0 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Four-post ROPS. Cab available.

Capacity
Fuel	16.4 gal 62.1 L
Hydraulic system	9.5 gal 36.0 L

Hydraulics
Type	closed center
Capacity	9.5 gal 36.0 L
Pressure	2248 psi 155.0 bar
Pump flow	6.6 gpm 25.0 lpm
	12.4 gpmOptOptional 46.9 lpm

Tractor hitch
Rear Type	II/I
Control	lower-link draft sensing
Rear lift	4022 lbs 1824 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
	540/1000
Engine RPM	540@2100

Dimensions & Tires
Wheelbase	81 inches 205 cm
Weight	4780 lbs 2168 kg
Front tire	7.50x16
Rear tire	16.9x28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	28
Charging volts	14
Batteries	2
Battery volts	12
Battery AH	55

References
Tracteur 1130 published in 1976, by John Deere
Tractors 1130, 2030, 2130, 3130 published in 1976, by John Deere
Product Information Manual published in 1975, by John Deere
Product Information Manual published in 1977, by John Deere

Engine

Engine Detail — 164 ci / 2.7 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	164 ci 2.7 L
Bore/Stroke	4.02x4.33 inches 102 x 110 mm
Power (net)	51 hp 38.0 kW
Power (gross)	53.6 hp 40.0 kW
Fuel system	direct injection
Air cleaner	dry
Compression	16.2:1
Rated RPM	2500
Idle RPM	650-2650
Operating RPM	1400-2500
Torque	123.2 lb-ft 167.1 Nm
Torque RPM	1400
Starter	electric
Starter volts	12
Oil capacity	6 qts 5.7 L
Coolant capacity	11 qts 10.4 L

Transmission

Transmission options
8-speed
16-speed two-speed power shift

Transmission — 8 forward and 4 reverse

Gears	8 forward and 4 reverse
With 16.9-28 rear tires.

Transmission — 16 forward and 8 reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and 8 reverse
Oil capacity	38 qts 36.0 L

Dimensions

John Deere 1130 Tires
Standard tires (ag)	Front: 7.50x16. Rear: 16.9x28

Dimensions
Wheelbase	81 inches 205 cm
Length	133 inches 337 cm
Width	73.4 inches 186 cm
Height (ROPS)	96.1 inches 244 cm
Height (exhaust)	79.1 inches 200 cm
Shipping weight	4780 lbs 2168 kg
Clearance (front axle)	25.5 inches 64 cm
Front tread	49.6 to 75.6 inches 125 to 192 cm
Rear tread	53.2 to 76.8 inches 135 to 195 cm
