John Deere 2755

The John Deere 2755 is a tractor produced by John Deere. It is equipped with a 239 ci 3.9 L engine. The rated power output is 88 hp 65.6 kW. Transmission: John Deere Top-Shaft Synchronized Creeper. Operating weight: 6262 to 8192 pounds.

Overview

	1987 - 1992 55 Utility SeriesUtility tractor
1987 - 1992
55 Utility Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Factories	Mannheim, Baden-Württemberg, Germany
	Saltillo, Mexico
Original price was $28,000 in 1992

Variants
Orchard	low-profile
High-crop	high-clearance

John Deere 2755 Engine
John Deere 3.9L 4-cyl diesel
Engine details ...

John Deere 2755 Power
Engine	88 hp 65.6 kW
Drawbar (claimed)	66 hp 49.2 kW
PTO (claimed)	75 hp 55.9 kW

Mechanical
Two- or four-wheel drive
Steering	power
	hydrostatic power OptOptional
Differential hydraulic wet disc brakes
Roll-Gard ROPS. Optional Sound-Gard cab.

Capacity
Fuel	22.2 gal 84.0 L
Hydraulic system	11.2 gal 42.4 L

Hydraulics
Type	closed center
Capacity	11.2 gal 42.4 L
Pressure	2320 psi 160.0 bar
Valves	1 to 3
Total flow	21 gpm 79.5 lpm

Tractor hitch
Rear Type	II/I
Rear lift	3720 lbs 1687 kg
Front Hitch	II OptOptional
Front lift	3372 lbs 1529 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
	540/1000 OptOptional
Front PTO	independent OptOptional
Front PTO Type	1000

Dimensions & Tires
Wheelbase	89.2 inches 226 cm
Weight	6262 to 8192 pounds
Front tire	7.50-18
Rear tire	16.9-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	55
Cab Charging amps	85
Batteries	2
Battery CCA	400
Battery volts	12

References
Utility Equipment Purchasing Guide published in 1987, by John Deere
Utility Equipment Purchasing Guide published in 1988, by John Deere
Powerful Pickups published in 1990, by John Deere
Operator's Manual 2755 and 2855N (OML57754) published in 1990
Tractors 40 to 85 HP published in 1986, by John Deere
Tractors 40 to 95 HP published in 1988, by John Deere
Task Masters published in 1990, by John Deere
40 to 100 HP Tractors Product Information Handbook published in 1987, by John Deere
40 to 100 HP Tractors Product Information Handbook published in 1988, by John Deere
40 to 100 HP Tractors Product Information Handbook published in 1991, by John Deere
The 1991 Long Green Line Agricultural Equipment Review published by John Deere

Engine

Engine Detail — 239 ci / 3.9 L Diesel

Manufacturer	John Deere
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	239 ci 3.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power	88 hp 65.6 kW
Compression	17.8:1
Rated RPM	2300
Starter volts	12
Oil capacity	10.6 qts 10.0 L
Coolant capacity	13.7 qts 13.0 L

Transmission

Transmission options
8-speed partially synchronized
16-speed partial power shift
12-speed

Transmission — John Deere Top-Shaft Synchronized (TSS)

Transmission	John Deere Top-Shaft Synchronized (TSS)
Type	partially synchronized
Gears	8 forward and 4 reverse
Clutch	dry disc
Four gears with two ranges (I-II) and reverse range.
With 16.9-24 rear tires.

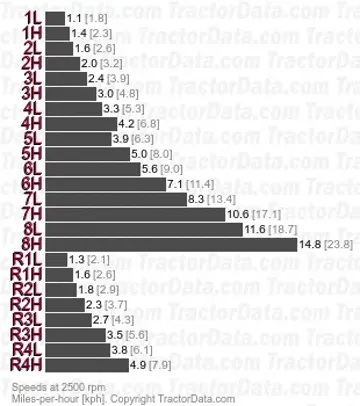

Transmission — John Deere Hi-Lo Top-Shaft Synchronized (TSS)

Transmission	John Deere Hi-Lo Top-Shaft Synchronized (TSS)
Type	partial power shift
Gears	16 forward and 8 reverse
Adds a hydraulic high-low power shift to the basic TSS transmission.
With 16.9-24 rear tires.
Transmission	John Deere Top-Shaft Synchronized Creeper
Gears	12 forward and 8 reverse

Dimensions

John Deere 2755 Tires
Ag front	7.50-18
Ag rear	16.9-24
Ag rear	16.9-24
	18.4-26
	18.4-30
	16.9-34
	18.4-34
	15.5-38
	12.4-42
Lawn/turf rear	21.5-16.1

Dimensions
Wheelbase	89.2 inches 226 cm

John Deere 2755 Weight
Shipping	6,262 lbs (2WD ROPS) 2840 kg
	7,199 lbs (2WD cab) 3265 kg
	7,133 lbs (4WD ROPS) 3235 kg
	8,192 lbs (4WD cab) 3715 kg
