John Deere 3040

The John Deere 3040 is a tractor produced by John Deere. It is equipped with a 359 ci 5.9 L engine. The rated power output is 88.5 hp 66.0 kW. Transmission: Power Syncron. Operating weight: 9175 to 9790 pounds.

Overview

	1980 - 1987 Model year 1980-19811981-1987 Utility tractor
1980 - 1987
Model year 1980-19811981-1987
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 3040 Engine
John Deere 5.9L 6-cyl diesel
Engine details ...

John Deere 3040 Power
Engine (net)	88.5 hp 66.0 kW
PTO (claimed)	77.8 hp 58.0 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Sound Gard SG2 cab standard.

Capacity
Fuel	33.3 gal 126.0 L
Hydraulic system	15.85 gal 60.0 L

Hydraulics
Type	closed center
Capacity	15.85 gal 60.0 L
Pressure	2466 psi 170.0 bar
Pump flow	12.4 gpm 46.9 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	7685 lbs 3485 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic disc
Rear PTO Type	540/1000
Engine RPM	540@2400
	1000@2400

Dimensions & Tires
2WD Wheelbase	100 inches 254 cm
4WD Wheelbase	102 inches 259 cm
Weight	9175 to 9790 pounds
Front tire	10.00-16
2WD Rear tire	16.9-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	55
Batteries	2
Battery volts	12
Battery AH	88

References
3040 Tractor published in 1981, by John Deere
Move up to John Deere... published in 1981

Engine

Engine Detail — 359 ci / 5.9 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	359 ci 5.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power (net)	88.5 hp 66.0 kW
Fuel system	direct injection
Air cleaner	dry
Compression	16.8:1
Rated RPM	2500
Torque	218 lb-ft 295.6 Nm
Torque RPM	1300
Starter	electric
Starter volts	12
Oil capacity	12.2 qts 11.5 L
Coolant capacity	25.4 qts 24.0 L

Transmission

Transmission options
8-speed
16-speed two-speed power shift

Transmission — 8 forward and 4 reverse

Gears

8 forward and 4 reverse

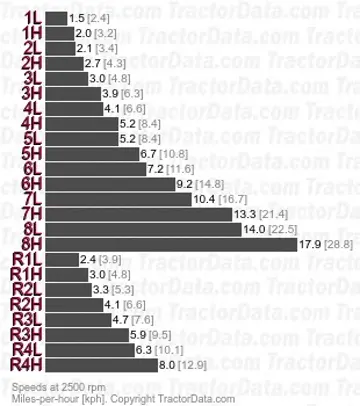

Transmission — Power Syncron

Transmission	Power Syncron
Type	two-speed power shift
Gears	16 forward and 8 reverse
Clutch	dry disc
Oil capacity	63.4 qts 60.0 L
With 16.9-38 rear tires.

Dimensions

John Deere 3040 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 16.9-38
4WD Standard tires (ag)	Front: 12.4-28. Rear: 16.9-38

Dimensions
2WD Wheelbase	100 inches 254 cm
4WD Wheelbase	102 inches 259 cm
2WD Length	167 inches 424 cm
4WD Length	173 inches 439 cm
Width	81 inches 205 cm
Height (cab)	110 inches 279 cm
Height (exhaust)	119 inches 302 cm
2WD Shipping weight	9175 lbs 4161 kg
4WD Shipping weight	9790 lbs 4440 kg
2WD Clearance (front axle)	26 inches 66 cm
4WD Clearance (front axle)	20 inches 50 cm
2WD Front tread	57 to 82 inches 144 to 208 cm
4WD Front tread	55.6 to 83 inches 141 to 210 cm
Rear tread	63 to 79 inches 160 to 200 cm
