john deere 6110se
 | 1998 - 2003
6010SE SeriesUtility tractor | 1998 - 2003 | 6010SE Series | Utility tractor |
|---|---|---|---|---|
1998 - 2003 | ||||
6010SE Series | ||||
Utility tractor | ||||
1998 - 2003 | |
|---|---|
6010SE Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
John Deere 6110SE Engine | |
|---|---|
John Deere 4.5L 4-cyl diesel | |
Engine details ...  |
John Deere 6110SE Transmissions | |
|---|---|

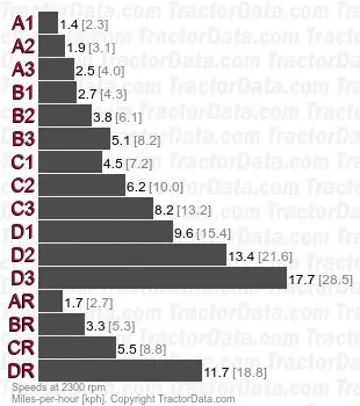

12-speed synchronized | |

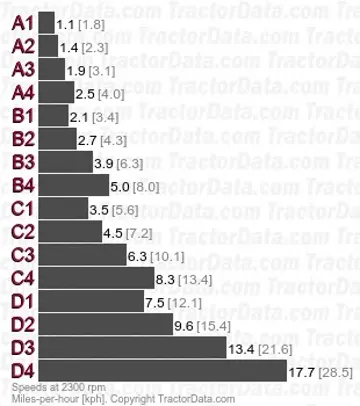

16-speed power shuttle | |

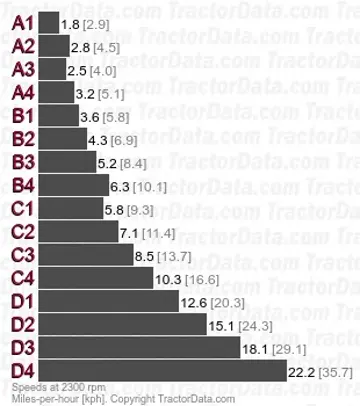

16-speed four-speed power shift | |
Transmission details ...  |
John Deere 6110SE Power | |
|---|---|
Engine (net) | 80 hp
59.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic rear |
Power steering | |
Hydraulic wet disc brakes | |
Trailer brakes | hydraulic OptOptional |
| pneumatic OptOptional |
Cab standard with heat. Optional air-conditioning. | |
Capacity | |
|---|---|
Fuel | 43.6 gal
165.0 L |
| 30.6 gal (LP Cab)
115.8 L |
Hydraulic system | 14.5 gal
54.9 L |
Hydraulics | |
|---|---|
Type | load sensing |
Capacity | 14.5 gal
54.9 L |
Pressure | 2901 psi
200.0 bar |
Valves | 4 OptOptional |
Pump flow | 14.3 gpm
54.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | electronic lower-link draft sensing |
Rear lift | 8970 lbs
4068 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540 |
| 540/1000 |
| 540/540E/1000 |
Engine RPM | 540@2124 |
| 1000@2208 |
| 540E@1684 |
Front PTO | independent |
Clutch | electro-hydraulic wet disc |
Front PTO Type | 1000 |
Engine RPM | 1000@2185 |
Dimensions & Tires | |
|---|---|
Wheelbase | 94.5 inches
240 cm |
Weight | 8536 lbs
3871 kg |
Front tire | 12.4R24 |
Rear tire | 16.9R30 |
Full dimensions and tires ...  | |
6110SE Serial Numbers | |
|---|---|
Location: | Serial number plate on the right side of the tractors frame. |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 90 |
Battery volts | 12 |
Battery AH | 110 |
References | |
|---|---|
 | |
6010 SE Series Tractors published in 2002, by John Deere |
