john deere 6830 premium
 | 2006 - 2011
Model year 2006-20082009-2011 | 2006 - 2011 | Model year 2006-20082009-2011 |
|---|---|---|---|
2006 - 2011 | |||
Model year 2006-20082009-2011 | |||
2006 - 2011 | |
|---|---|
Model year 2006-20082009-2011 |
Production | |
|---|---|
Manufacturer | John Deere |
John Deere 6830 Premium Engine | |
|---|---|
John Deere 6.8L 6-cyl diesel | |
Engine details ...  |
John Deere 6830 Premium Transmissions | |
|---|---|

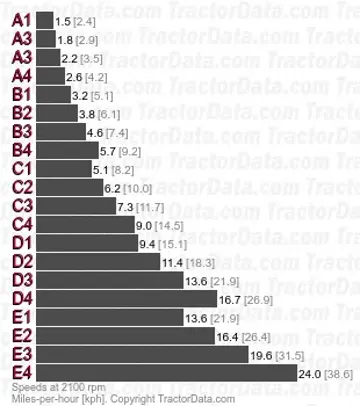

20-speed partial power shift | |
32-speed partial power shift | |
infinitely variable transmission (IVT) | |
Transmission details ...  |
John Deere 6830 Premium Power | |
|---|---|
Engine (gross) | 140 hp
104.4 kW |
Engine (net) | 135 hp
100.7 kW |
Engine (max) | 150 hp
111.9 kW |
PTO (claimed) | 121 hp
90.2 kW |
Boost PTO (claimed) | 143 hp
106.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Capacity | |
|---|---|
Fuel | 66 gal
249.8 L |
Optional Fuel | 85.9 gal
325.1 L |
Hydraulic system | 14.8 gal
56.0 L |
IVT Hydraulic system | 17.4 gal
65.9 L |
Hydraulics | |
|---|---|
Type | load-sensing pressure-flow compensating (PFC) |
Capacity | 14.8 gal
56.0 L |
IVT Capacity | 17.4 gal
65.9 L |
Pressure | 2,901 psi
200.0 bar |
Valves | 4 (Max) |
Pump flow | 15.9 gpm
60.2 lpm |
Optional Pump flow | 29.1 gpm
110.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | IIIN |
Control | 15.9 |
Optional Control | 29.1 |
Rear lift (at ends) | 18,880 lbs
8563 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540/540E/1000 |
Engine RPM | 540@1995 |
| 540E@1743 |
| 1000@1995 |
Front PTO Type | 1000 |
Engine RPM | 1000@1995 |
Dimensions & Tires | |
|---|---|
Wheelbase | 104.3 inches
264 cm |
Weight | 12,300 lbs
5579 kg |
Front tire | 16.9R28 |
Rear tire | 20.8R38 |
Full dimensions and tires ...  | |
6830 Premium Serial Numbers | |
|---|---|
Location: | Front-right side of main tractor frame, above front axle. |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
