John Deere 7425

The John Deere 7425 is a tractor produced by John Deere. It is equipped with a 414 ci 6.8 L engine. The listed engine power is Diesel (listed): 138 hp / 102.9 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: PowrQuad. Operating weight: 10750 to 12210 pounds.

Engine Power
Diesel (listed): 138 hp / 102.9 kW; Diesel (listed): 4 hp / 3.0 kW
Fuel & Capacities
54.7 gal 207.0 L
Transmission
PowrQuad
Operating Weight
10750 to 12210 pounds

Overview

John Deere 7425 tractor photo
2009 - ???? 7025 SeriesRow-Crop tractor
2009 - ????
7025 Series
Row-Crop tractor
2009 - ????
7025 Series
Row-Crop tractor
Production
Manufacturer
John Deere
Row-Crop tractor
Built in Saltillo, Mexico
John Deere 7425 Engine
John Deere 6.8L 6-cyl diesel
Fuel tank
54.7 gal 207.0 L
Engine details ...
John Deere 7425 Transmission
16-speed four-speed power shift
Transmission details ...
John Deere 7425 Power
Engine
138 hp 102.9 kW
PTO (claimed)
123 hp 91.7 kW
Mechanical
Two- or four-wheel drive
Power steering
Two-post ROPS. Cab optional.
Hydraulics
Type
closed center pressure flow compensated
Tractor hitch
Rear Type
IIIN/II
Rear lift (at 24"/610mm)
8390 lbs 3805 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Engine RPM
540@1995
1000@1995
Dimensions & Tires
2WD Wheelbase
104.3 inches 264 cm
4WD Wheelbase
106.3 inches 270 cm
Weight
10750 to 12210 pounds
Front tire
10.00-16
2WD Rear tire
18.4-38
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
90
Charging volts
14
Battery volts
12
Battery AH
154

Engine

John Deere 7425 tractor photo
2009 - ???? 7025 SeriesRow-Crop tractor
2009 - ????
7025 Series
Row-Crop tractor
2009 - ????
7025 Series
Row-Crop tractor

Engine Detail — 414 ci / 6.8 L Diesel

Manufacturer
John Deere PE6068
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
414 ci 6.8 L
Bore/Stroke
4.19x5.00 inches 106 x 127 mm
Power
138 hp 102.9 kW
Compression
16.9:1
Rated RPM
2100
Idle RPM
850-2250
Operating RPM
1500-2100
Firing order
1-5-3-6-2-4
Starter
electric
Starter volts
12
Starter power
4 hp 3.0 kW
Oil capacity
20.6 qts 19.5 L
Coolant capacity
21.1 qts 20.0 L
Intake valve clearance
0.014 inches 0.356 mm
Exhaust valve clearance
0.018 inches 0.457 mm

Transmission

John Deere 7425 tractor photo
2009 - ???? 7025 SeriesRow-Crop tractor
2009 - ????
7025 Series
Row-Crop tractor
2009 - ????
7025 Series
Row-Crop tractor

Transmission — PowrQuad

Transmission
PowrQuad
Type
four-speed power shift
Gears
16 forward and reverse
Clutch
hydraulic wet disc
Four power shift speeds (1-4) in four ranges (A-D) with power shuttle.
With 18.4-38 rear tires.

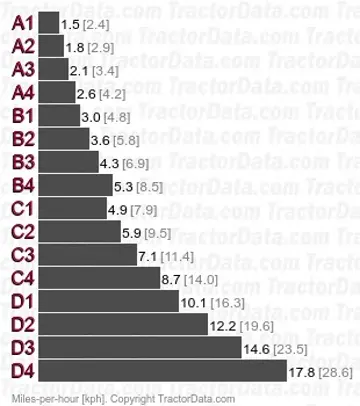

7425 PowrQuad four-speed power shift speeds

Dimensions

John Deere 7425 tractor photo
2009 - ???? 7025 SeriesRow-Crop tractor
2009 - ????
7025 Series
Row-Crop tractor
2009 - ????
7025 Series
Row-Crop tractor
John Deere 7425 Tires
2WD Standard tires (ag)
Front: 10.00-16. Rear: 18.4-38
4WD Standard tires (ag)
Front: 14.9-28. Rear: 18.4
Dimensions
2WD Wheelbase
104.3 inches 264 cm
4WD Wheelbase
106.3 inches 270 cm
Length
188 inches 477 cm
2WD Height (steering wheel)
87.2 inches 221 cm
4WD Height (steering wheel)
86.7 inches 220 cm
2WD Shipping weight
10750 lbs 4876 kg
4WD Shipping weight
12210 lbs 5538 kg
Rack-and-pinion rear axle
3.375 by 110.5 inches 85 by 2806 mm

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 7425.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

John Deere 7425 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere 7425.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
