John Deere 8310T

The John Deere 8310T is a tractor produced by John Deere. It is equipped with a 496 ci 8.1 L engine. The rated power output is 206.33 hp 153.9 kW. Transmission: 16 forward and 4 reverse. Drive type: crawler. Operating weight: 23650 to 25960 pounds.

Overview

	2000 - 2001 8000 Ten SeriesAgricultural Crawler tractor
2000 - 2001
8000 Ten Series
Agricultural Crawler tractor

Production
Manufacturer	John Deere
Agricultural Crawler tractor
Built in Waterloo, Iowa, USA

Variants
8310	wheeled tractor
8310T	crawler tractor

John Deere 8310T Engine
John Deere 8.1L 6-cyl
Engine details ...

John Deere 8310T Transmission
16-speed full powershift
Transmission details ...

John Deere 8310T Power
PTO (claimed)	205 hp 152.9 kW
Drawbar (tested)	177.43 hp 132.3 kW
PTO (tested)	235.12 hp 175.3 kW
Performance test details ...

Mechanical
Drive	crawler
Steering	hydrostatic
Hydraulic wet disc brakes
CommandView cab standard with heat and A/C. Optional dexlue cab with rear windshield wiper, additional lights, mirror, and sun visor.

Capacity
Fuel	130 gal 492.1 L
Hydraulic system	65 gal 246.0 L

Hydraulics
Type	pressure/flow compensated (PFC)
Capacity	65 gal 246.0 L
Pressure	2900 psi 200.0 bar
Valves	3 to 5
Pump flow	30 gpm 113.6 lpm
Total flow	33.5 gpm 126.8 lpm
	42.5 gpm (optional) 160.9 lpm

Tractor hitch
Rear Type	III/IIIN
Rear lift	15,650 lbs 7098 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tracks
Wheelbase	89 inches 226 cm
Weight	23650 to 25960 pounds
16-inch tracks
Full dimensions and tracks ...

Electrical
Charging system	alternator
Charging amps	140
Batteries	2
Battery CCA	1850
Battery volts	12

References
8000/8000T TEN Series Tractors Product Information Handbook published in 1999, by John Deere

Engine

Engine Detail — 496 ci / 8.1 L

Manufacturer	John Deere
Configuration	turbocharged aftercooled, 6-cylinder, liquid-cooled
Displacement	496 ci 8.1 L
Bore/Stroke	4.56x5.06 inches 116 x 129 mm
Air cleaner	two paper elements
Compression	16.5:1
Rated RPM	2200
Starter volts	12
Coolant capacity	35.9 qts 34.0 L
Oil capacity	26.4 qts 25.0 L

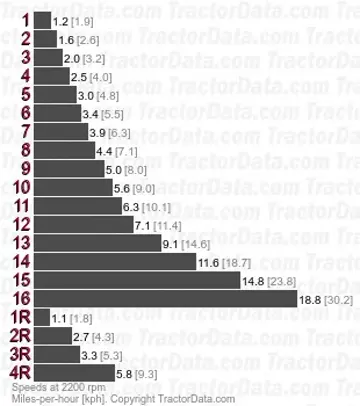

Transmission

Transmission — 16 forward and 4 reverse full powershift

Type	full powershift
Gears	16 forward and 4 reverse
Oil capacity	260 qts 246.1 L

Dimensions

John Deere 8310T Tracks
Width	16 inches 40 cm
Width	18 inches 45 cm
Width	24 inches 60 cm
Width	30 inches 76 cm

Dimensions
Wheelbase	89 inches 226 cm
Length	207 inches 525 cm
Width	103.7 inches (minimum) 263 cm
Height	122.9 inches (cab) 312 cm
Ground clearance	17.7 inches (drawbar) 44 cm
	21.7 inches (rear axle) 55 cm

John Deere 8310T Weight
Shipping	23,650 lbs 10727 kg
Operating	25,960 lbs 11775 kg
Ballasted	28,335 lbs 12852 kg
Max capacity	31,500 lbs 14288 kg

Tests

OCED Tractor Test 1776
Diesel 16-speed crawler April 17 - May 12, 2000 Link: OCED Tractor Test 1776 file
PTO performance
Max power	235.12 hp 175.3 kW
Fuel use	12.5 gal/hour 47.3 l/hour
Power at rated engine speed	206.33 hp 153.9 kW
Fuel use	11.8 gal/hour 44.7 l/hour
Drawbar performance
Max power	177.43 hp 132.3 kW
Fuel use	11.9 gal/hour 45.0 l/hour
Gear 9 used for power test.
Max pull	26,656 lbs 12091 kg
Gear 5 used for pull test.
