John Deere 9330

The John Deere 9330 is a tractor produced by John Deere. It is equipped with a 826.7 ci 13.5 L engine. The rated power output is 48 gpm 181.7 lpm. Transmission: John Deere PowerShift. Operating weight: 34950 to 37115 pounds.

Overview

	2007 - 2011 9030 SeriesFour-wheel Drive (4WD) tractor
2007 - 2011
9030 Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	John Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA

John Deere 9330 Engine
John Deere 13.5L 6-cyl diesel
Engine details ...

John Deere 9330 Power
Engine	375 hp 279.6 kW
PTO (claimed)	320 hp 238.6 kW
Drawbar (tested)	302.16 hp 225.3 kW
PTO (tested)	385.04 hp 287.1 kW
Performance test details ...

Mechanical
Four-wheel drive
Differential lock	hydraulic differential lock OptOptional
Steering	hydrostatic power
Hydraulic wet discs brakes
Trailer brakes	hydraulic OptOptional
CommandView Cab standard with air-conditioning. Optional automatic climate control and leather trim.

Capacity
Fuel	350 gal 1324.8 L
Hydraulic system	27 gal 102.2 L
	28 gal (3-point) 106.0 L
	20 gal (high-flow) 75.7 L
	31 gal (high-flow and 3-point) 117.3 L

Hydraulics
Type	closed-center pressure and flow compensating
Capacity	27 gal 102.2 L
	28 gal (3-point) 106.0 L
	20 gal (high-flow) 75.7 L
	31 gal (high-flow and 3-point) 117.3 L
Pressure	2900 psi 200.0 bar
Valves	4 to 6
SCV flow	30 gpm 113.6 lpm
PowrSync Total flow	44 gpm 166.5 lpm
PowerShift Total flow	48 gpm 181.7 lpm
Hi-Flow Total flow	78 gpm 295.2 lpm

Tractor hitch
Rear Type	4N/3
	4N/4
Rear lift (at 24"/610mm)	15,300 lbs 6940 kg
Drawbar	Catergory 4 standard with secondary chain support. Optional reinforcement up to 11,000 pounds. Optional 12,000 pounds Catergory 5 drawbar, not available with 3-point hitch or PTO.

Power Take-off (PTO)
Rear PTO	independent (optional)
Clutch	electro-hydraulic wet disc
Rear PTO Type	1000 (1.75)

Dimensions & Tires
Weight	34950 to 37115 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery CCA	950
Battery volts	12

References
New 9030 Series Tractors published in 2007, by John Deere
9230, 9330, 9430, 9530 and 9630 Tractors (OMAR283034) published in 2009
9230, 9330, 9430, 9530 and 9630 Tractors (OMRE325893) published in 2011

Engine

Engine Detail — 826.7 ci / 13.5 L Diesel

Manufacturer	John Deere
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled
Displacement	826.7 ci 13.5 L
Bore/Stroke	5.197x6.496 inches 132 x 165 mm
Emissions	Tier III
Power	375 hp 279.6 kW
Air cleaner	aspirator and dual paper elemnts
Compression	16.0:1
Rated RPM	2100
Starter volts	12
Coolant capacity	70 qts 66.2 L
Oil capacity	44 qts 41.6 L

John Deere 9330 Engine

Transmission

Transmission options
24-speed partial power shift
18-speed full power shift

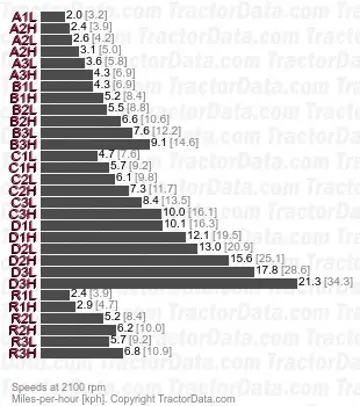

Transmission — John Deere PowrSync

Transmission	John Deere PowrSync
Type	partial power shift
Gears	24 forward and 6 reverse
Clutch	hydraulic wet disc
Three gears (1-3) in four ranges (A-D) with high-low power shift. Gears and range shifts are synchronized using the clutch.
With 620/70R42 tires.

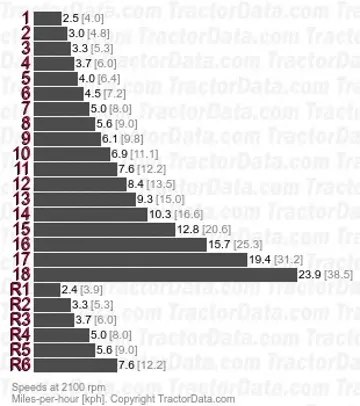

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	electronic wet disc
With 620/70R42 tires.

Dimensions

John Deere 9330 Tires

Dimensions
Length	270 inches 685 cm
	285 inches (with 3-point) 723 cm
Width	118.6 inches 301 cm
Shipping weight	34950 lbs 15853 kg
Operating weight	37115 lbs*With with 620/70R46 duals 16835 kg
Hinge pin Ground clearance	18.5 inches 46 cm
Clearance (rear axle)	28.8 inches 73 cm
Rear axle	4.331 by 120 inches 110 by 3048 mm

John Deere 9330 Height
Hood	105 inches 266 cm
Cab	140 inches 355 cm
Exhaust	154 inches 391 cm

Tests

OCED Tractor Test 1941
Diesel 24-speed 4WD October 6 - November 5, 2008 Link: OCED Tractor Test 1941 file
PTO performance
Max power	385.04 hp 287.1 kW
Fuel use	22.4 gal/hour 84.8 l/hour
Power at rated engine speed	332.97 hp 248.3 kW
Fuel use	20.0 gal/hour 75.7 l/hour
Power at rated PTO speed	375.92 hp 280.3 kW
Fuel use	21.9 gal/hour 82.9 l/hour
Drawbar performance
Max power	302.16 hp 225.3 kW
Fuel use	19.5 gal/hour 73.8 l/hour
Max pull	36,887 lbs 16731 kg
