John Deere 9370R

The John Deere 9370R is a tractor produced by John Deere. It is equipped with a 549.2 ci 9.0 L engine. The rated power output is 370 hp 275.9 kW. Transmission: e18 PowerShift. Operating weight: 39200 lbs 17781 kg.

Overview

	2015 - 2021 9R SeriesFour-wheel Drive (4WD) tractor
2015 - 2021
9R Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	John Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA

John Deere 9370R Engine
John Deere 9.0L 6-cyl diesel
Engine details ...

John Deere 9370R Transmission
18-speed full power shift
Transmission details ...

John Deere 9370R Power
Engine (gross)	370 hp 275.9 kW
Engine (max)	407 hp 303.5 kW
PTO (claimed)	335 hp 249.8 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Articulated power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Command View Cab III standard with air-conditioning. AutoTrac ready; ISOBUS 11783; JDLink ready

Capacity
Fuel	310 gal 1173.4 L
Exhaust fluid (DEF)	22 gal 83.3 L
Hydraulic system	73 gal 276.3 L
	75 gal*With hitch and PTO 283.9 L

Hydraulics
Type	closed-center pressure/flow compensated
Capacity	73 gal 276.3 L
	75 gal*With hitch and PTO 283.9 L
Pressure	2900 psi 200.0 bar
Rear valves	4 to 8
Pump flow	58 gpm 219.5 lpm
	115 gpm*Optional, with second 57GPM pump 435.3 lpm
SCV flow	35 gpm 132.5 lpm
	42 gpm*Flow at 19.1mm coupler with high-flow hydraulic option. 159.0 lpm

Tractor hitch
Rear Type	IV/IVN OptOptional
	IVN/III OptOptional
Control	draft sensing
Rear lift	15000 lbs 6804 kg
	20000 lbs 9072 kg
Drawbar	Cat. 4
	Cat. 4 HD OptOptional
	Cat. 5 HD OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Clutch	electro-hydraulic
Rear PTO Type	1000 (1.75)

Dimensions & Tires
Wheelbase	149.8 inches 380 cm
Weight	39200 lbs 17781 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
	240 OptOptional
Charging volts	12
Batteries	3
Battery CCA	925
Battery volts	12

Engine

Engine Detail — 549.2 ci / 9.0 L Diesel

Manufacturer	John Deere PSS
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	549.2 ci 9.0 L
Bore/Stroke	4.661x5.354 inches 118 x 136 mm
Emissions	Tier IV
Rated Power (gross)	370 hp 275.9 kW
Maximum Power (gross)	407 hp 303.5 kW
Fuel system	electronic high-pressure common rail
Compression	16:1
Rated RPM	2100
Starter	electric
Starter volts	12
Oil capacity	35.9 qts 34.0 L
Coolant capacity	44.4 qts 42.0 L

Transmission

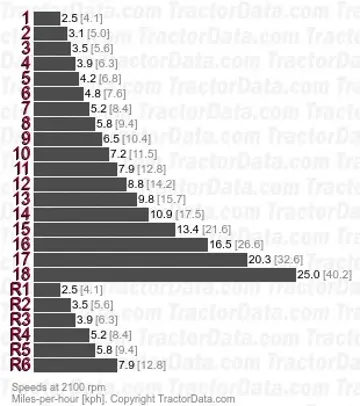

Transmission — e18 PowerShift

Transmission	e18 PowerShift
Type	full power shift
Gears	18 forward and 6 reverse
Oil capacity	291.6 qts 276.0 L
	300.1 qts*With hitch and PTO 284.0 L
With group 47 (710/70R38) tires.

Dimensions

John Deere 9370R Tires

Dimensions
Wheelbase	149.8 inches 380 cm
Length	314.3 inches 798 cm
Width	176 inches 447 cm
Clearance (drawbar)	15 inches 38 cm
Front axle	4.33 by 120 inches 109 by 3048 mm
Front axle	4.72 by 120 inches 119 by 3048 mm
Rear axle	4.33 by 120 inches 109 by 3048 mm
Rear axle	4.72 by 120 inches 119 by 3048 mm

John Deere 9370R Weight
Shipping	39200 lbs 17781 kg
Ballasted	48700 lbs 22090 kg
Max Drawbar	5450 lbs*Cat. 4 and Cat. 4 HD 2472 kg
	11000 lbs*Cat. 4 HD with reinforcement 4989 kg
	12000 lbs*Cat. 5 5443 kg

John Deere 9370R Height
Hood	108 inches 274 cm
Cab	145 inches 368 cm
Exhaust	157 inches 398 cm
