John Deere 9460R

The John Deere 9460R is a tractor produced by John Deere. It is equipped with a 826.7 ci 13.5 L engine. The rated power output is 460 hp 343.0 kW. Transmission: John Deere PowerShift. Operating weight: 39010 to 41715 pounds.

Overview

	2012 - 2014 9R/RT SeriesFour-wheel Drive (4WD) tractor
2012 - 2014
9R/RT Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	John Deere
Four-wheel Drive (4WD) tractor
Built in Waterloo, Iowa, USA
Original price was $337,031 in 2014

Variants
9460R	4WD
9460RT	crawler

John Deere 9460R Engine
John Deere 13.5L 6-cyl diesel
Fuel tank	350 gal 1324.8 L
Engine details ...

John Deere 9460R Power
Engine (gross)	460 hp 343.0 kW
Engine (max)	506 hp 377.3 kW
PTO (claimed)	319 hp 237.9 kW
Drawbar (tested)	367.43 hp 274.0 kW
PTO (tested)	374.45 hp 279.2 kW
Performance test details ...

Mechanical
Four-wheel drive
Final drives	inboard planetary
Differential lock	fully-locking electro-hydraulic
Steering	hydraulic power
Hydraulic wet disc brakes
Trailer brakes	hydraulic optional
CommandView II cab standard with air-conditioning.

Hydraulics
Type	closed center pressure flow compensated
Pressure	2900 psi 200.0 bar
Valves	4 to 6
Pump flow	44 gpm 166.5 lpm
	48 gpm (PowerShift) 181.7 lpm
	78 gpm (High-Flow) 295.2 lpm
SCV flow	37 gpm 140.0 lpm
	45 gpm (19.1mm SCV) 170.3 lpm

Tractor hitch
Rear Type	4N/3
	4N/4
Control	electronic draft sensing
Rear lift	15,300 lbs 6940 kg
	20,000 lbs (optional) 9072 kg
Drawbar	Category 4 standard with optional heavy-duty support . Optional Category 5 with heavy-duty support rated at 5,440 kg. (2,470 kg)

Power Take-off (PTO)
Rear PTO	independent (optional)
Rear PTO Type	1000 (1.75)

Dimensions & Tires
Wheelbase	137.8 inches 350 cm
Weight	39010 to 41715 pounds
Front tire	710/70R42
Rear tire	710/70R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Charging volts	12
Batteries	3
Battery CCA	925
Battery volts	12

Engine

Engine Detail — 826.7 ci / 13.5 L Diesel

Manufacturer	John Deere PowerTech PSX
Configuration	turbocharged diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	826.7 ci 13.5 L
Bore/Stroke	5.197x6.496 inches 132 x 165 mm
Emissions	Tier 4A
Emission control	exhaust gas recirculation (EGR)
Rated Power (gross)	460 hp 343.0 kW
Maximum Power (gross)	506 hp 377.3 kW
Fuel system	electronic unit injectors
Compression	16:1
Rated RPM	2100
Starter volts	12

Transmission

Transmission options
24-speed partial power shift
18-speed full power shift

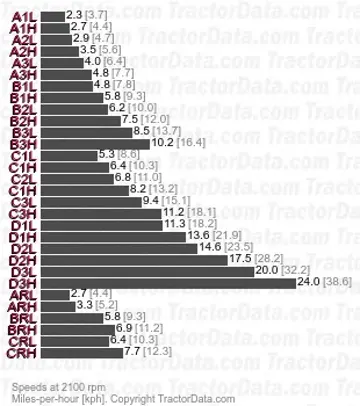

Transmission — John Deere PowrSync

Transmission	John Deere PowrSync
Type	partial power shift
Gears	24 forward and 6 reverse
Clutch	hydraulic wet disc
Three gears (1-3) in four ranges (A-D) with high-low power shift. Synchronized shifting between gears and ranges.
With Group 48 rear tires.

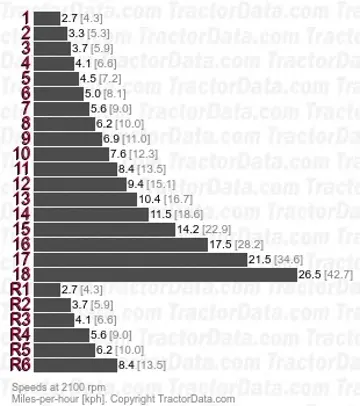

Transmission — John Deere PowerShift

Transmission	John Deere PowerShift
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	hydraulic wet disc
With Group 48 rear tires.

Dimensions

John Deere 9460R Tires
Ag front	710/70R42
Ag rear	710/70R42

Dimensions
Wheelbase	137.8 inches 350 cm
Length	282 inches 716 cm
With hitch Length	295 inches 749 cm
Width	120 inches 304 cm
Front axle	4.72 by 120 inches 119 by 3048 mm
Rear axle	4.72 by 120 inches 119 by 3048 mm

John Deere 9460R Weight
Shipping	39010 lbs 17694 kg
Operating	41715 lbs (480/80R46 triples) 18921 kg
Max capacity	48321 lbs 21918 kg

John Deere 9460R Height
Hood	108 inches 274 cm
Cab	145 inches 368 cm
	151 inches (GPS) 383 cm
Exhaust	177 inches 449 cm

Tests

OCED Tractor Test 2040
Diesel 18-speed 4WD September 25 - October 4, 2012 Link: OCED Tractor Test 2040 file
PTO performance
Max power	374.45 hp 279.2 kW
Power at rated engine speed	333.03 hp 248.3 kW
Fuel use	21.2 gal/hour 80.2 l/hour
Power at rated PTO speed	369.68 hp 275.7 kW
Fuel use	21.5 gal/hour 81.4 l/hour
Drawbar performance
Max power	367.43 hp 274.0 kW
Fuel use	23.9 gal/hour 90.5 l/hour
Gear 7 used for power test.
Max pull	43371 lbs 19673 kg
Gear 1 used for pull test.
