John Deere 110

1963 - 1974

Model year 1963-19671968-1974

100 Series

Garden tractor

Manufacturer

John Deere

Garden tractor

Built in Horicon, Wisconsin, USA

The "10" in the John Deere 110 model name did not refer to the tractor's horsepower, but was keeping in line with the New Generation tractor models (1010, 2010, 3010, 4010).

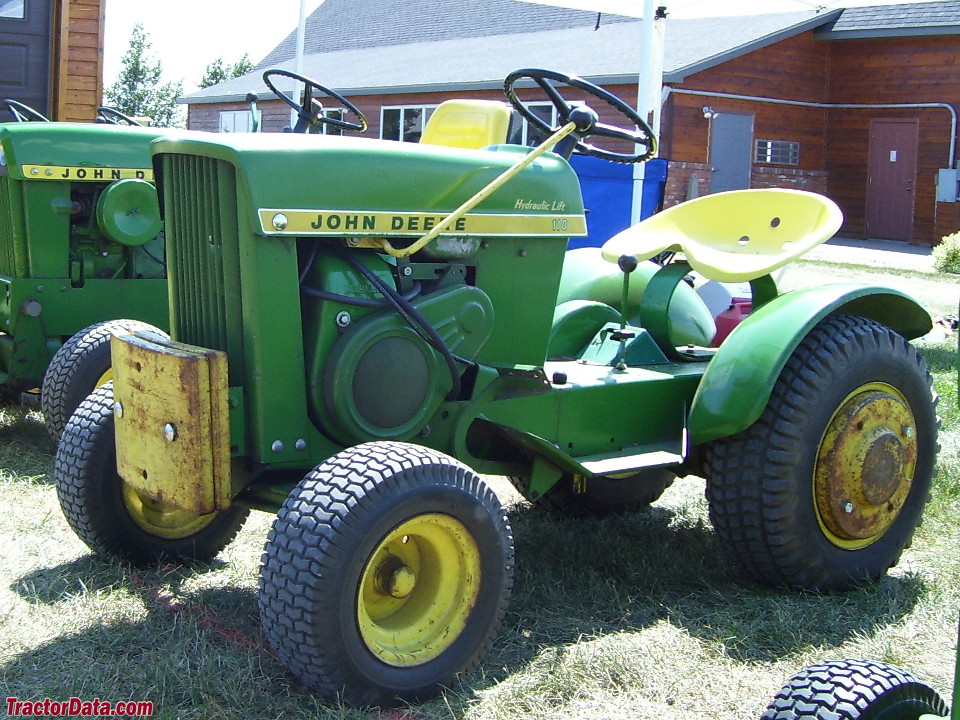

110H

hydraulic lift

Two-wheel drive

Manual steering

Manual brakes

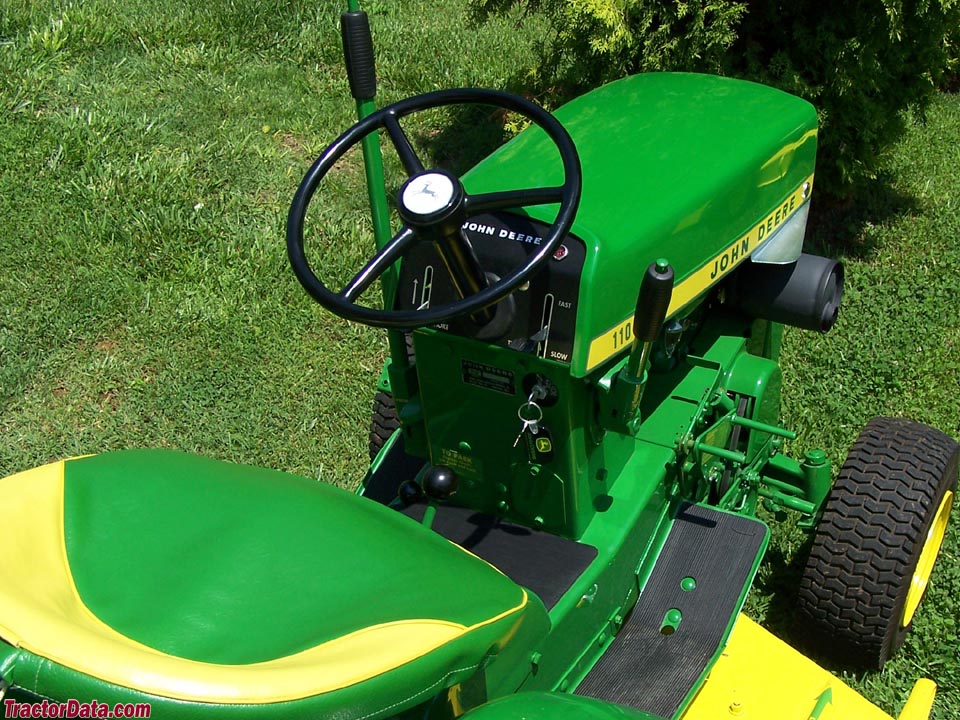

Open operator station.

Type

sleeve hitch OptOptional

Mid PTO

independent

Clutch

manual idler pulley

Wheelbase

44 inches 111 cm

Weight

502 lbs 227 kg

Front tire

16x6.50-8

Rear tire

8-12

Ground

negative

Battery volts

12

Battery AH

24

The John Deere 10 Series New Generation Tractors published in 2004, by Hain Publishing

America's Leading Farm Equipment Manufacturer Introduces... published in 1963, by John Deere

110 Lawn and Garden Tractor published in 1964, by John Deere

110 Lawn and Garden Tractor published in 1965, by John Deere

Weekend Freedom Machine published in 1966, by John Deere

Add a handyman to your staff... published in 1966, by John Deere

John Deere Lawn & Garden Tractors published in 1967

Modern Farming published in 1965, by John Deere

Work Horse Loader for 110 Lawn & Garden Tractor published in 1965, by Johnson

Operator's Manual 110 (OM-M40401) published in 1963

Operator's Manual 110 and 110H (OM-M41412) published in 1966

Service Manual 110 and 112 Lawn and Garden Tractors (SM-2059) published in 1967

Operator's Manual 38 Rotary Mower (OMM41126) published in 1963

Operator's Manual 42 Front Blade (OMM440688) published in 1963

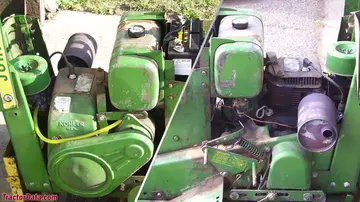

7HP Kohler 277cc 1-cyl gasoline

8HP Kohler 305cc 1-cyl gasoline

Manufacturer

Kohler K161

Fuel Type

Gasoline

Configuration

1-cylinder, air-cooled horizontal-shaft

The Kohler K161 was the original engine on the John Deere 110. It was used only during the 1963 model year.

Displacement

277 cc 16.94 ci

Bore/Stroke

2.875x2.50 inches 73 x 64 mm

Power

7 hp 5.2 kW

Rated RPM

3600

Idle RPM

1200-3800

Starter volts

12

Sparkplug gap

0.025 inches 0.635 mm

Point gap

0.020 inches 0.508 mm

Oil capacity

1.125 qts 1.1 L

Oil change

25 h

Manufacturer

Kohler K181S

Fuel Type

Gasoline

Configuration

1-cylinder, air-cooled horizontal-shaft

The 8-horsepower Kohler K181 replaced the K161 for the 1964 model year.

Displacement

305 cc 18.64 ci

Bore/Stroke

2.9375x2.75 inches 75 x 70 mm

Power

8 hp 6.0 kW

Air cleaner

dry

Compression

6.8:1

Rated RPM

3600

Idle RPM

1200-3800

Starter volts

12

Sparkplug gap

0.025 inches 0.635 mm

Point gap

0.020 inches 0.508 mm

Intake valve clearance

0.007 inches*Cold 0.178 mm

Exhaust valve clearance

0.016 inches*Cold 0.406 mm

Oil capacity

1 qts 0.9 L

Oil change

25 h

3-speed gear with mechanical CVT

4-speed gear with mechanical CVT

Manufacturer

Peerless

Type

belt-driven gear with mechanical CVT

Gears

3 forward and 1 reverse

Oil capacity

1 qts 0.9 L

Oil change

200 h

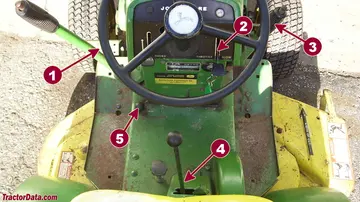

1

Clutch-Brake pedal

2

Throttle

3

Variator lever

4

Gear shift

5

Parking brake

Transmission

Peerless 2300

Type

belt-driven gear with mechanical CVT

Gears

4 forward and 1 reverse

Oil capacity

1.5 qts 1.4 L

Oil change

200 h

The transmission features four forward gears plus reverse, with a variable speed control. The clutch is used to shift between gears. Once in gear, the variable speed lever adjusts the drive ratio to provide a range of speeds that can be adjusted on the move.

1

Clutch-Brake pedal

2

Throttle

3

Variator lever

4

Gear shift

5

Parking brake

Ag front

4.80/4.00-8

Ag rear

6-12

Lawn/turf front

16x6.50-8

Lawn/turf rear

8-12

Wheelbase

44 inches 111 cm

Length

63 inches 160 cm

Width

34.5 inches*Minimum 87 cm

Height

38.75 inches 98 cm

Weight

502 lbs 227 kg

Front tread

29 inches 73 cm (R1)

Front tread

30 inches 76 cm (R3)

Rear tread

27/33 inches 68/83 cm

38" mid-mount mower deck

Snowblower

Blade

Front-end loader

Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Type

mid-mount John Deere 38

3-blade, lift is manual or hydraulic OptOptional

Cutting width

38 inches 96 cm

Belt

M40223M

Weight

102 lbs 46 kg

Overall width

44 inches 111 cm

Cut height

1.5 to 3.5 inch 3 to 8 cm
