John Deere 112L

The John Deere 112L is a tractor produced by John Deere Lawn Tractors. It is equipped with a 460 cc 28.07 ci engine. The listed engine power is Gasoline (listed): 12.5 hp / 9.3 kW. Transmission: Eaton. Operating weight: 470 lbs 213 kg.

Overview

	1985 100 Lawn SeriesLawn tractor
1985
100 Lawn Series
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Original price was $2,690 in 1985

John Deere 112L Engine
12.5HP Kawasaki 460cc 1-cyl gasoline
Fuel tank	2.5 gal 9.5 L
Engine details ...

John Deere 112L Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Weight	470 lbs 213 kg
Front tire	15x6.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual 108, 111,112L ,116, and 116H (OMM88424-J4) published in 1984
Riding Mowers & Lawn Tractors published in 1985, by John Deere

Engine

Engine Detail — 460 cc / 28.07 ci Gasoline

Manufacturer	Kawasaki FB460V
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	460 cc 28.07 ci
Bore/Stroke	3.5x2.9 inches 89 x 74 mm
Power	12.5 hp 9.3 kW
Starter	electric
Starter volts	12
Sparkplug	NGK BMR-4A
Sparkplug gap	0.025 inches 0.635 mm
Oil capacity	1.75 qts 1.7 L

Transmission

Transmission — Eaton

Transmission	Eaton
Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	1.125 qts 1.1 L
Oil type	Deere Hy-GardSAE 20	Deere Hy-Gard	SAE 20
Single-range hydrostatic transmission operated with left-hand control lever.

Dimensions

John Deere 112L Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Weight	470 lbs 213 kg

Attachments

38" Mower deck
Type	mid-mount John Deere
	2-blade with manual lift
Cutting width	38 inches 96 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

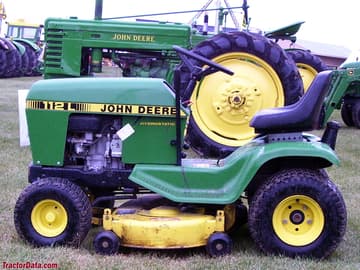

John Deere 112L
