John Deere 130
The John Deere 130 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 286 cc 17.5 ci engine. The listed engine power is Gasoline (listed): 9 hp / 6.7 kW. Transmission: Peerless 801-038A. Operating weight: 415 lbs 188 kg.
Engine Power
Gasoline (listed): 9 hp / 6.7 kW
Fuel & Capacities
2.2 gal
8.3 L
Transmission
Peerless 801-038A
Operating Weight
415 lbs
188 kg
Overview
 | 1986 - 1988
Late 100 Lawn SeriesLawn tractor
Late 100 Lawn Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Built in Horicon, Wisconsin, USA | |
John Deere 130 Engine | |
|---|---|
9HP Kawasaki 286cc 1-cyl gasoline | |
Fuel tank | 2.2 gal
8.3 L |
Engine details ...  | |
John Deere 130 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Weight | 415 lbs
188 kg |
Front tire | 13x5.00-6 |
Rear tire | 18x6.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 13 |
Battery CCA | 225 |
Battery volts | 12 |
Battery Group | U1 |
References | |
|---|---|
 | |
Operator's Manual 130, 160, 165, 180, and 185 (OMM89684) published in 1985 | |
John Deere Lawn Tractors and Riding Mowers published in 1986 | |
Lawn Tractors published in 1987, by John Deere | |
Technical Manual 130, 160, 165, 175, 180, and 185 Lawn Tractors. (TM1351) published in 1988 |
Engine
Engine Detail — 286 cc / 17.5 ci Gasoline
Manufacturer | Kawasaki FC290V |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 286 cc
17.5 ci |
Bore/Stroke | 3.07x2.36 inches
78 x 60 mm |
Power | 9 hp
6.7 kW |
Rated RPM | 3350 |
Starter volts | 12 |
Oil capacity | 1.125 qts
1.1 L |
Transmission
Transmission — Peerless 801-038A
Transmission | Peerless 801-038A |
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Oil capacity | 1.1 qts
1.0 L |
 | |
Dimensions
John Deere 130 Tires | |
|---|---|
Lawn/turf front | 13x5.00-6 |
Lawn/turf rear | 18x6.50-8 |
Dimensions | |
|---|---|
Wheelbase | 44.7 inches
113 cm |
Length | 65 inches
165 cm |
Height | 39.3 inches
99 cm |
Weight | 415 lbs
188 kg |
Attachments
Attachment overview | |
|---|---|
30" mid-mount mower deck | |
Snowblower | |
Blade |
30" Mower deck | |
|---|---|
Type | mid-mount John Deere |
manual lift | |
Cutting width | 30 inches
76 cm |
Overall width | 40.9 inches
103 cm |
Photos

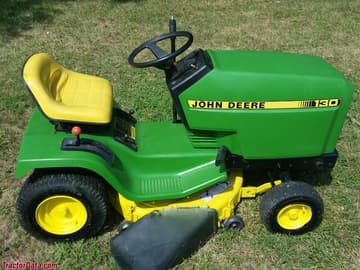

John Deere 130, right side.

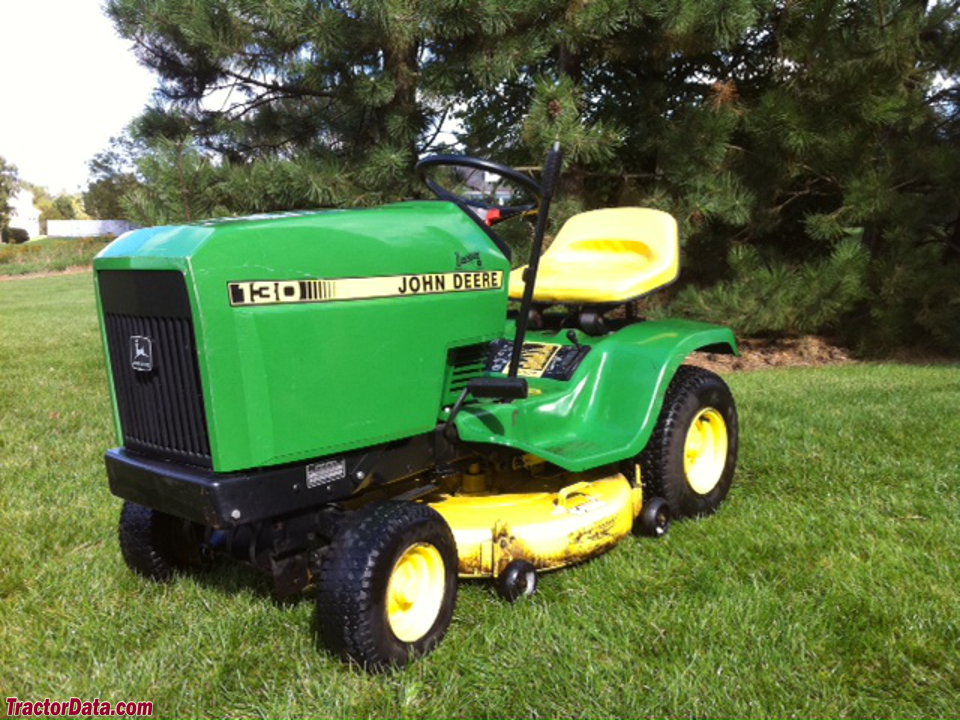

John Deere 130, left side.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere 130.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere 130 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere 130.
Converted Equivalents:
Horsepower (HP)9 hp
Kilowatts (kW)6.7 kW
Metric Horsepower (PS / CV)9.1 PS
