John Deere 160

The John Deere 160 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 460 cc 28.1 ci engine. The listed engine power is Gasoline (gross): 12.5 hp / 9.3 kW. Transmission: Peerless 801-038A. Operating weight: 470 lbs 213 kg.

Overview

	1986 - 1988 Late 100 Lawn SeriesLawn tractor
1986 - 1988
Late 100 Lawn Series
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Horicon, Wisconsin, USA

Variants
160	gear
165	hydrostatic

John Deere 160 Engine
12.5HP Kawasaki 460cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

John Deere 160 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	44.7 inches 113 cm
Weight	470 lbs 213 kg
Front tire	15x6.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	13
Battery volts	12

References
Operator's Manual 130, 160, 165, 180, and 185 (OMM89684) published in 1985
John Deere Lawn Tractors and Riding Mowers published in 1986
Lawn Tractors published in 1987, by John Deere
Technical Manual 130, 160, 165, 175, 180, and 185 Lawn Tractors. (TM1351) published in 1988

Engine

Engine Detail — 460 cc / 28.1 ci Gasoline

Manufacturer	Kawasaki FB460V
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	460 cc 28.1 ci
Bore/Stroke	3.50x2.91 inches 89 x 74 mm
Power (gross)	12.5 hp 9.3 kW
Rated RPM	3350
Starter volts	12
Oil capacity	1.9 qts 1.8 L

Transmission

Transmission — Peerless 801-038A

Transmission	Peerless 801-038A
Type	belt-driven gear
Gears	5 forward and 1 reverse
Oil capacity	1.1 qts 1.0 L

Dimensions

John Deere 160 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	44.7 inches 113 cm
Length	65 inches 165 cm
Width	39.3 inches 99 cm
Weight	470 lbs 213 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount John Deere 38
	manual lift
Cutting width	38 inches 96 cm
Overall width	49.7 inches 126 cm

Photos

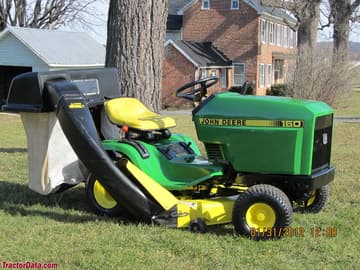

John Deere 160
