John Deere E90
The John Deere E90 is a tractor produced by John Deere Lawn Tractors. The rated power output is 0.9 hp (continuous) 0.7 kW. Transmission: 3 forward and 1 reverse. Operating weight: 475 lbs 215 kg.
Engine Power
0.9 hp (continuous)
0.7 kW
Fuel & Capacities
0.75 qts
0.7 L
Transmission
3 forward and 1 reverse
Operating Weight
475 lbs
215 kg
John Deere Lawn Tractors John Deere E90 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1972 - 1974
Model year 19721973-1974
Riding lawn mower |
|---|---|
1972 - 1974 | |
Model year 19721973-1974 | |
Riding lawn mower | |
1972 - 1974 | |
|---|---|
Model year 19721973-1974 | |
Riding lawn mower |
Production | |
|---|---|
Manufacturer | John Deere |
Riding lawn mower | |
John Deere E90 Engine | |
|---|---|
0.9HP electric | |
Engine details ...  |
John Deere E90 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station |
Dimensions & Tires | |
|---|---|
Wheelbase | 40 inches
101 cm |
Weight | 475 lbs
215 kg |
Front tire | 11x4.00-5 |
Rear tire | 16x16.50-8 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
New John Deere Electric Riding Mower published in 1971 | |
New John Deere Electric Riding Mower published in 1972 | |
Riding Mowers published in 1975, by John Deere | |
Service Manual John Deere Electric 90 Mower (SM-2098) published in 1973 |
Engine
| 1972 - 1974
Model year 19721973-1974
Riding lawn mower |
|---|---|
1972 - 1974 | |
Model year 19721973-1974 | |
Riding lawn mower | |
1972 - 1974 | |
|---|---|
Model year 19721973-1974 | |
Riding lawn mower |
Manufacturer | electric |
|---|---|
36-Volt DC traction motor and two 36V DC mower blade motors. | |
Power | 0.9 hp (continuous)
0.7 kW |
2.7 hp (peak)
2.0 kW | |
Rated RPM | 2400 |
Transmission
| 1972 - 1974
Model year 19721973-1974
Riding lawn mower |
|---|---|
1972 - 1974 | |
Model year 19721973-1974 | |
Riding lawn mower | |
1972 - 1974 | |
|---|---|
Model year 19721973-1974 | |
Riding lawn mower |
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Oil capacity | 0.75 qts
0.7 L |
Oil type | SAE 90 |
 | |
Dimensions
| 1972 - 1974
Model year 19721973-1974
Riding lawn mower |
|---|---|
1972 - 1974 | |
Model year 19721973-1974 | |
Riding lawn mower | |
1972 - 1974 | |
|---|---|
Model year 19721973-1974 | |
Riding lawn mower |
John Deere E90 Tires | |
|---|---|
Lawn/turf front | 11x4.00-5 |
Lawn/turf rear | 16x16.50-8 |
Dimensions | |
|---|---|
Wheelbase | 40 inches
101 cm |
Length | 56.2 inches
142 cm |
Width | 43 inches
109 cm |
Height | 37 inches
93 cm |
Weight | 475 lbs
215 kg |
Front tread | 22 inches
55 cm |
Rear tread | 25 inches
63 cm |
Attachments
| 1972 - 1974
Model year 19721973-1974
Riding lawn mower |
|---|---|
1972 - 1974 | |
Model year 19721973-1974 | |
Riding lawn mower | |
1972 - 1974 | |
|---|---|
Model year 19721973-1974 | |
Riding lawn mower |
Attachment overview | |
|---|---|
34" mid-mount mower deck | |
Blade |
34" Mower deck | |
|---|---|
Type | mid-mount John Deere |
2-blade | |
Cutting width | 34 inches
86 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Photos

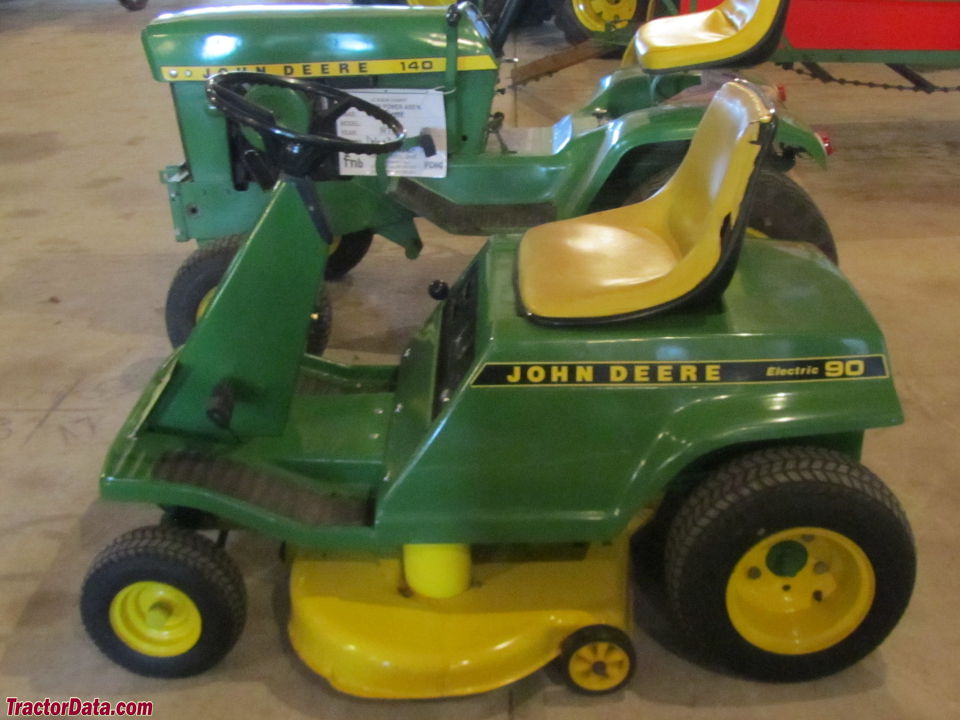

John Deere E90

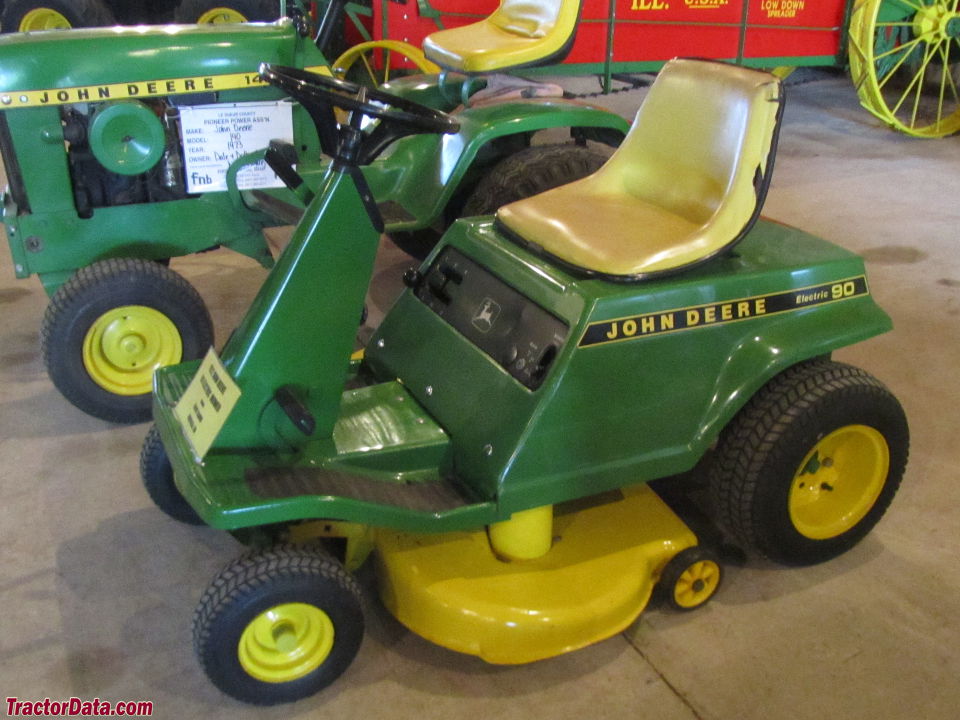

John Deere E90

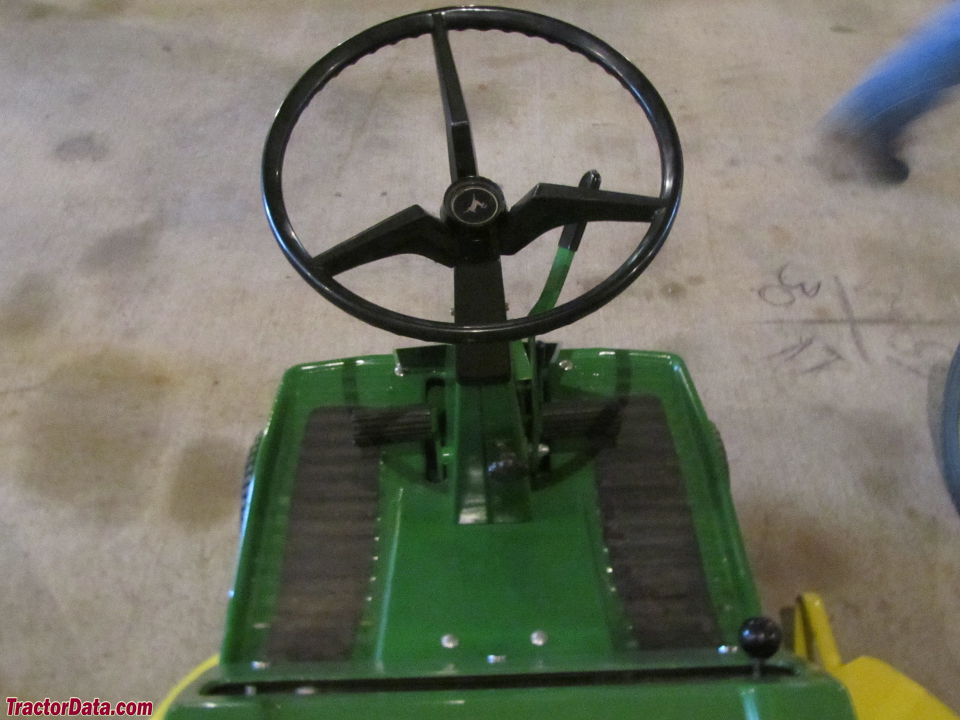

John Deere E90
John Deere E90
