John Deere RX75

The John Deere RX75 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 290 cc 17.7 ci engine. The rated power output is 9 hp 6.7 kW. Transmission: 7 forward and 1 reverse. Operating weight: 380 lbs 172 kg.

Overview

	1987 - 1990 Riding lawn mower
1987 - 1990
Riding lawn mower

1987 - 1990
Riding lawn mower

Production
Manufacturer	John Deere
Riding lawn mower
Original price was $1,750 in 1990

Variants
RX75	economy
SX75	deluxe

John Deere RX75 Engine
9HP Kawasaki 290cc 1-cyl gasoline
Fuel tank	1.0 gal 3.8 L
Engine details ...

John Deere RX75 Transmission
7-speed mechanical variable transmission
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Disc brakes
Open operator station

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	42 inches 106 cm
Weight	380 lbs 172 kg
Front tire	11x4.00-5
Rear tire	16x6.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
Lawn & Garden Equipment published in 1990, by John Deere
Operator's Manual RX73, RX75, RX95, SX75, and SX95 Riding Mowers (OM-M90058) published in 1987
Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere
Operator's Manual Grass Bagger or RX, SX, SRX, and GX Riding Mowers and LX Lawn Tractors (OMM115491) published in 1991

Engine

	1987 - 1990 Riding lawn mower
1987 - 1990
Riding lawn mower

1987 - 1990
Riding lawn mower

Engine Detail — 290 cc / 17.7 ci Gasoline

Manufacturer	Kawasaki FC290V
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	290 cc 17.7 ci
Bore/Stroke	3.07x2.36 inches 78 x 60 mm
Power	9 hp 6.7 kW
Air cleaner	dry element
Starter	electric
Starter volts	12
Sparkplug	Champion RN11YC
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	1.2 qts 1.1 L
Oil change	50 h

Transmission

	1987 - 1990 Riding lawn mower
1987 - 1990
Riding lawn mower

1987 - 1990
Riding lawn mower

Transmission — 7 forward and 1 reverse mechanical variable transmission

Type	mechanical variable transmission
Gears	7 forward and 1 reverse

Dimensions

	1987 - 1990 Riding lawn mower
1987 - 1990
Riding lawn mower

1987 - 1990
Riding lawn mower

John Deere RX75 Tires
Lawn/turf front	11x4.00-5
Lawn/turf rear	16x6.50-8

Dimensions
Wheelbase	42 inches 106 cm
Length	61 inches 154 cm
Width	26 inches 66 cm
Height	39 inches 99 cm
Weight	380 lbs 172 kg

Attachments

	1987 - 1990 Riding lawn mower
1987 - 1990
Riding lawn mower

1987 - 1990
Riding lawn mower

30" Mower deck
Type	mid-mount John Deere
	1-blade
Cutting width	30 inches 76 cm
Overall width	42 inches 106 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

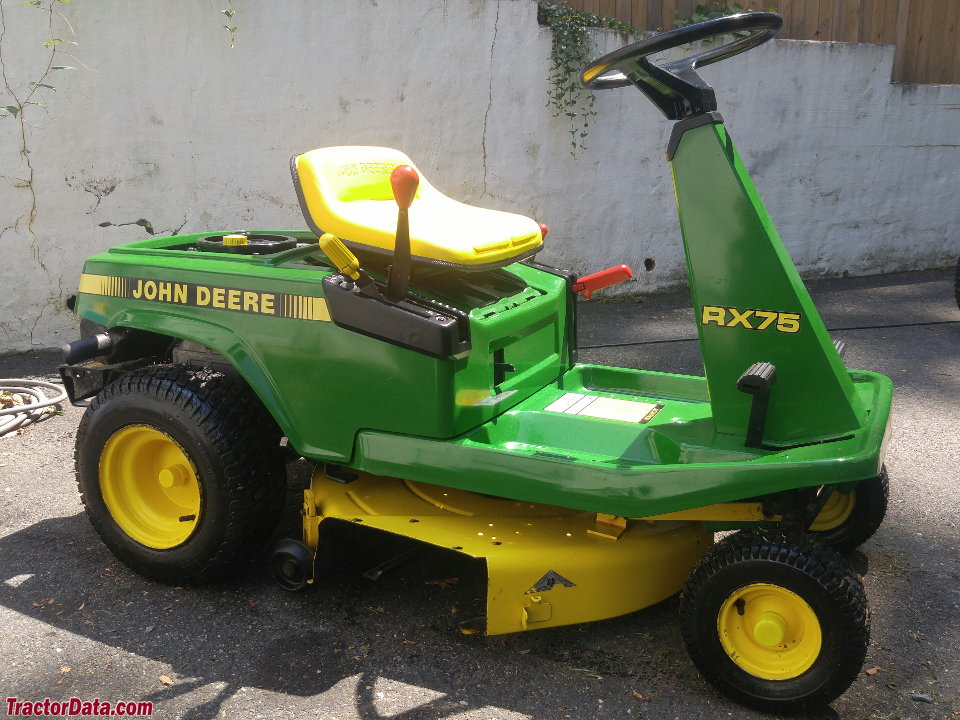

John Deere RX75

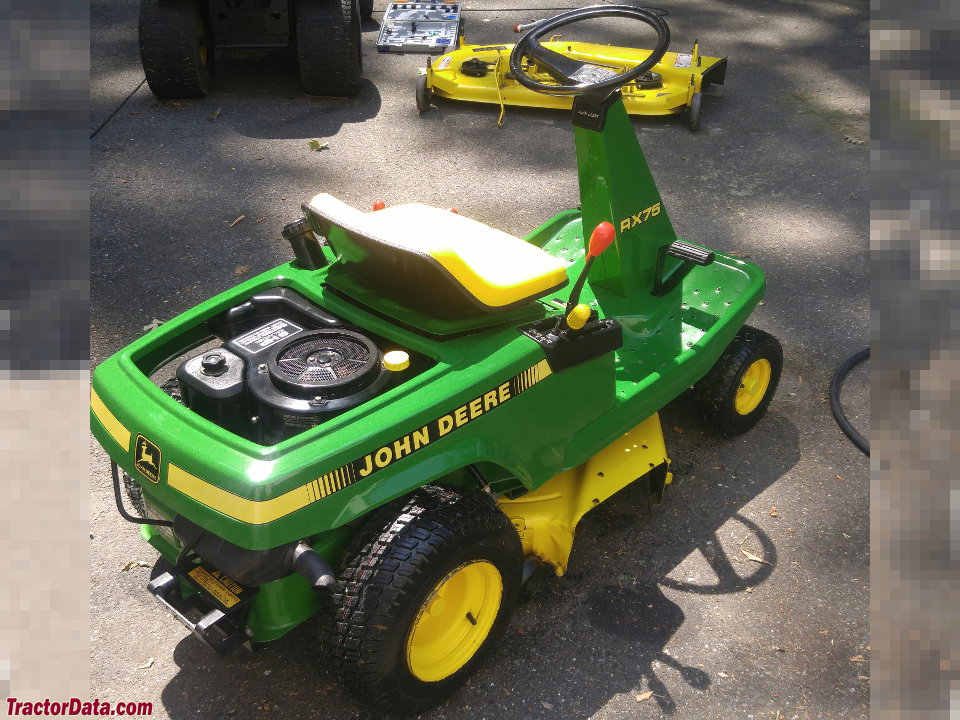

John Deere RX75

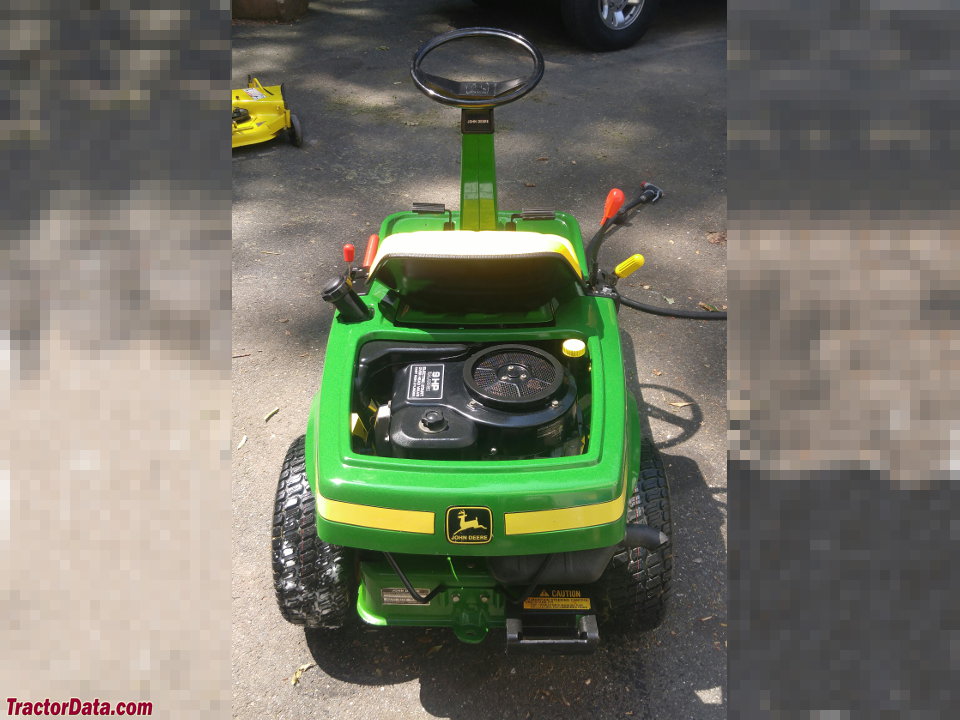

John Deere RX75

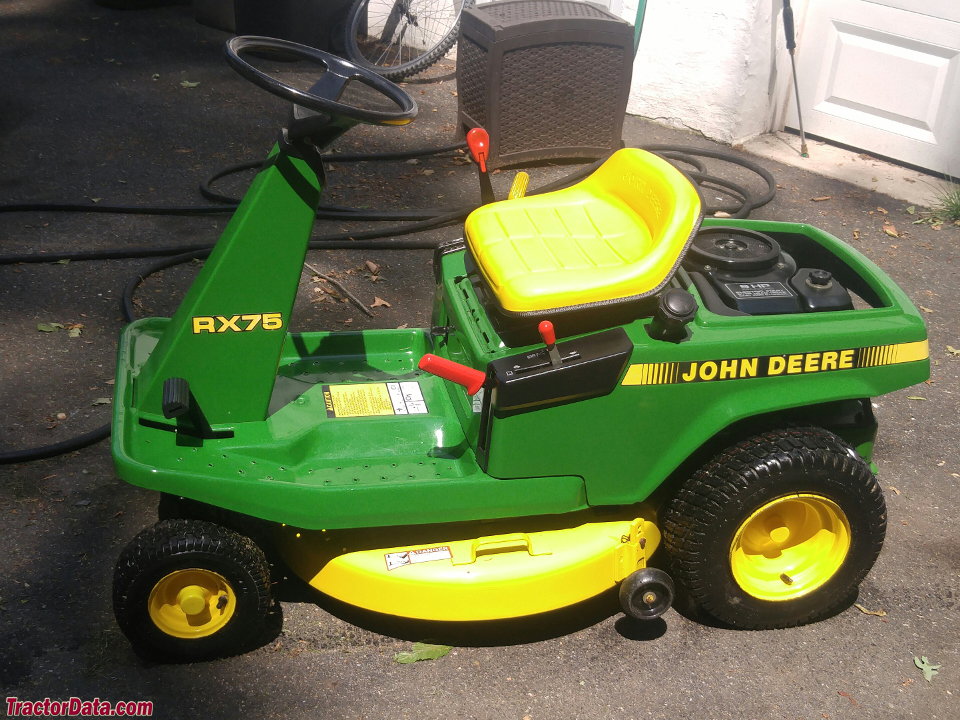

John Deere RX75
