John Deere SX75

The John Deere SX75 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 290 cc 17.7 ci engine. The listed engine power is Gasoline (listed): 9 hp / 6.7 kW. Transmission: 7 forward and 1 reverse. Operating weight: 390 lbs 176 kg.

Engine Power
Gasoline (listed): 9 hp / 6.7 kW
Fuel & Capacities
1.0 gal 3.8 L
Transmission
7 forward and 1 reverse
Operating Weight
390 lbs 176 kg

Overview

John Deere SX75 tractor photo
1987 - 1990 Riding lawn mower
Production
Manufacturer
John Deere
Riding lawn mower
Original price was $2,040 in 1990
Variants
RX75
economy
SX75
deluxe
John Deere SX75 Engine
9HP Kawasaki 290cc 1-cyl gasoline
Fuel tank
1.0 gal 3.8 L
Engine details ...
John Deere SX75 Transmission
7-speed mechanical variable transmission
Transmission details ...
Mechanical
Two-wheel drive
Steering
manual
Disc brakes
Open operator station
Power Take-off (PTO)
Mid PTO
independent
Clutch
mechanical
Dimensions & Tires
Wheelbase
42 inches 106 cm
Weight
390 lbs 176 kg
Front tire
11x4.00-5
Rear tire
16x6.50-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Battery CCA
160
Battery volts
12
References
SX75 references literature
Lawn & Garden Equipment published in 1990, by John Deere
Operator's Manual RX73, RX75, RX95, SX75, and SX95 Riding Mowers (OM-M90058) published in 1987
Grounds Care & Recreation Products Sales Manual published in 1989, by John Deere
Operator's Manual Grass Bagger or RX, SX, SRX, and GX Riding Mowers and LX Lawn Tractors (OMM115491) published in 1991

Engine

Engine Detail — 290 cc / 17.7 ci Gasoline

Manufacturer
Kawasaki FC290V
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
290 cc 17.7 ci
Bore/Stroke
3.07x2.36 inches 78 x 60 mm
Power
9 hp 6.7 kW
Air cleaner
dry element
Starter
electric
Starter volts
12
Sparkplug
Champion RCJ8
Sparkplug gap
0.030 inches 0.762 mm
Oil capacity
1.2 qts 1.1 L
Oil change
50 h

Transmission

Transmission — 7 forward and 1 reverse mechanical variable transmission

Type
mechanical variable transmission
Gears
7 forward and 1 reverse
SX75 mechanical variable transmission speeds

Dimensions

John Deere SX75 Tires
Lawn/turf front
11x4.00-5
Lawn/turf rear
16x6.50-8
Dimensions
Wheelbase
42 inches 106 cm
Length
61 inches 154 cm
Width
26 inches 66 cm
Height
39 inches 99 cm
Weight
390 lbs 176 kg

Attachments

30" Mower deck
Type
mid-mount John Deere
1-blade
Cutting width
30 inches 76 cm
Overall width
42 inches 106 cm
Cut height
1 to 4 inch 2 to 10 cm

Photos

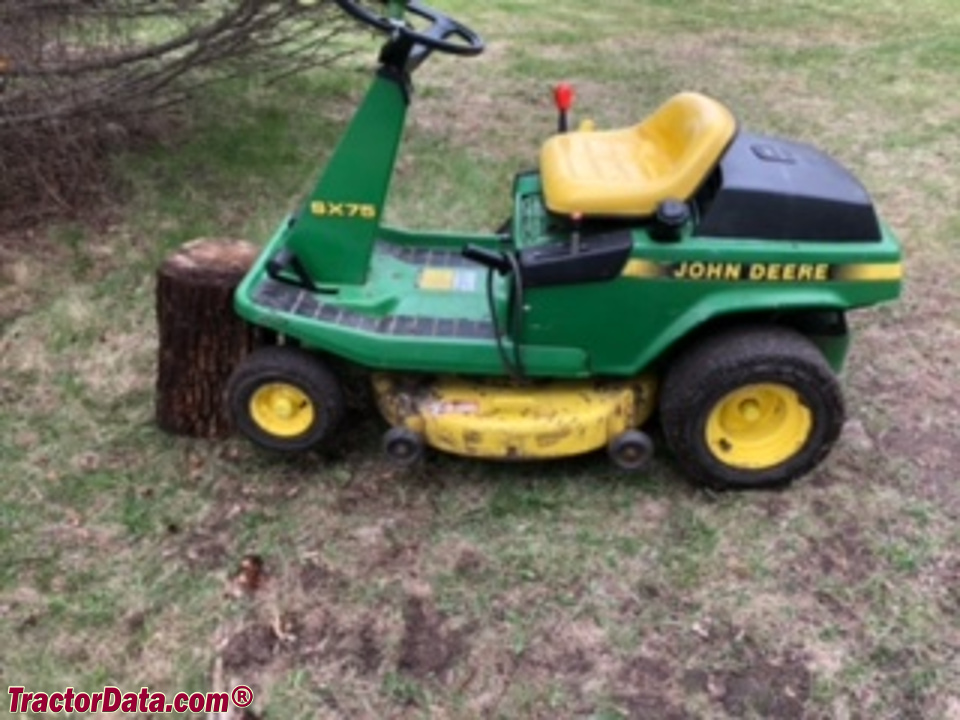

John Deere SX75, right side.

John Deere SX75, right side.

John Deere SX75, left side.

John Deere SX75, left side.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere SX75.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

John Deere Lawn Tractors John Deere SX75 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere SX75.

Converted Equivalents:

Horsepower (HP)9 hp
Kilowatts (kW)6.7 kW
Metric Horsepower (PS / CV)9.1 PS
