John Deere X135R
The John Deere X135R is a tractor produced by John Deere Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (gross): 11.8 hp / 8.8 kW. Transmission: Tuff Torq K46CY. Operating weight: 514 lbs 233 kg.
Engine Power
Gasoline (gross): 11.8 hp / 8.8 kW
Fuel & Capacities
2 gal
7.6 L
Transmission
Tuff Torq K46CY
Operating Weight
514 lbs
233 kg
Overview
 | 2013 -
X100 SeriesRear-discharge mower |
|---|---|
2013 - | |
X100 Series | |
Rear-discharge mower | |
2013 - | |
|---|---|
X100 Series | |
Rear-discharge mower |
Production | |
|---|---|
Manufacturer | John Deere |
Rear-discharge mower | |
Built in Greeneville, Tennessee, USA | |
John Deere X135R Engine | |
|---|---|
8.8KW Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
John Deere X135R Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.3 inches
122 cm |
Weight | 514 lbs
233 kg |
Front tire | 15x6-6 |
Rear tire | 18x8.5-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
The Complete Range of Lawn Care Solutions published in 2014, by John Deere | |
The Complete Range of Lawn Care Solutions published in 2016, by John Deere |
Engine
| 2013 -
X100 SeriesRear-discharge mower |
|---|---|
2013 - | |
X100 Series | |
Rear-discharge mower | |
2013 - | |
|---|---|
X100 Series | |
Rear-discharge mower |
Engine Detail — 655 cc / 40 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft |
Displacement | 655 cc
40 ci |
Bore/Stroke | 2.97x2.89 inches
75 x 73 mm |
Power (gross) | 11.8 hp
8.8 kW |
Rated RPM | 3150 |
Starter | electric |
Starter volts | 12 |
Transmission
| 2013 -
X100 SeriesRear-discharge mower |
|---|---|
2013 - | |
X100 Series | |
Rear-discharge mower | |
2013 - | |
|---|---|
X100 Series | |
Rear-discharge mower |
Transmission — Tuff Torq K46CY
Transmission | Tuff Torq K46CY |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil change | sealed unit, owner service is not recommended |
 | |
Dimensions
| 2013 -
X100 SeriesRear-discharge mower |
|---|---|
2013 - | |
X100 Series | |
Rear-discharge mower | |
2013 - | |
|---|---|
X100 Series | |
Rear-discharge mower |
John Deere X135R Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 18x8.5-8 |
Dimensions | |
|---|---|
Wheelbase | 48.3 inches
122 cm |
Length | 97.4 inches
247 cm |
Width | 37.8 inches
96 cm |
Height | 42.5 inches
107 cm |
Weight | 514 lbs
233 kg |
Attachments
| 2013 -
X100 SeriesRear-discharge mower |
|---|---|
2013 - | |
X100 Series | |
Rear-discharge mower | |
2013 - | |
|---|---|
X100 Series | |
Rear-discharge mower |
42" Mower deck | |
|---|---|
Type | mid-mount John Deere |
manual lift | |
Cutting width | 42 inches
106 cm |
Cut height | 1 to 3.5 inch
2 to 8 cm |
Photos

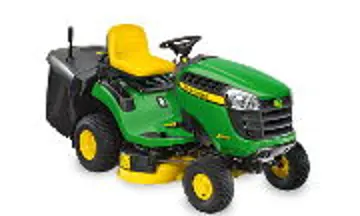

John Deere X135R tractor photo
John Deere Lawn Tractors John Deere X135R Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere X135R.
Converted Equivalents:
Horsepower (HP)11.8 hp
Kilowatts (kW)8.8 kW
Metric Horsepower (PS / CV)12 PS
