john deere lawn tractors x575
 | 2002 - 2006
HDGT X SeriesGarden tractor | 2002 - 2006 | HDGT X Series | Garden tractor |
|---|---|---|---|---|
2002 - 2006 | ||||
HDGT X Series | ||||
Garden tractor | ||||
2002 - 2006 | |
|---|---|
HDGT X Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Garden tractor | |
Built in Horicon, Wisconsin, USA | |
Original price was $10,739 in 2002 | |
Variants | |
|---|---|
X475 | 2WD two-wheel steer |
X475AWS | all-wheel steer |
X575 | 4WD |
John Deere X575 Engine | |
|---|---|
23HP Kawasaki 745cc 2-cyl gasoline | |
Engine details ...  |

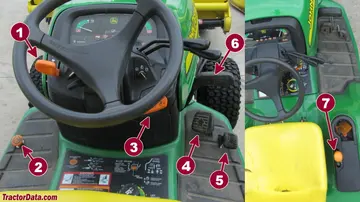

John Deere X575 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Wet disc brakes | |
Open operator station | |
Photos | |
|---|---|
 | |
John Deere X575 photos...  |
Capacity | |
|---|---|
Fuel | 6.5 gal
24.6 L |
Front axle | 4.5 qts
4.3 L |
Hydraulics | |
|---|---|
Pressure | 1000 psi
69.0 bar |
Valves | 2 |
Total flow | 6.2 gpm
23.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
| 1-limited OptOptional |
Rear lift | 450 lbs
204 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Rear PTO Type | 540 |
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 55.7 inches
141 cm |
Weight | 925 lbs
419 kg |
Front tire | 18x8.5-10 |
Rear tire | 26x12-12 |
Full dimensions and tires ...  | |
John Deere X575 attachments | |
|---|---|
48" mid-mount mower deck | |
54" mid-mount mower deck | |
62" mid-mount mower deck | |
front-end loader | |
Attachment details ...  |
X575 Serial Number Location | |
|---|---|
 | |
Serial number decal on the middle-right of the main tractor frame. |
X575 Serial Numbers | |
|---|---|
2002 | 010001 |
2003 | 020001 |
2004 | 030001 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 20 |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn and Garden Product Information Handbook published in 2002, by John Deere | |
Lawn and Garden Product Information Handbook published in 2003, by John Deere | |
Lawn and Garden Product Information Handbook published in 2004, by John Deere | |
Lawn and Garden Product Information Handbook published in 2005, by John Deere | |
Premium Lawn and Garden Tractors published in 2004, by John Deere | |
Lawn and Garden Tractors published in 2000, by John Deere | |
Operator's Manual X575, X585 (OMM148365) published in 2002 | |
Operator's Manual X575, X585 (OMM150217) published in 2003 |
