john deere lawn tractors x750
 | 2013 -
X700 SeriesGarden tractor | 2013 - | X700 Series | Garden tractor |
|---|---|---|---|---|
2013 - | ||||
X700 Series | ||||
Garden tractor | ||||
2013 - | |
|---|---|
X700 Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | John Deere |
Garden tractor | |
Built in Horicon, Wisconsin, USA | |
Original price | $10,499 (2013 ) |
$10,659 (2018 ) | |
$11,059 (2019 ) | |
Variants | |
|---|---|
X748 | 4WD 2-wheel steer |
X744 | 2WD 4-wheel steer |
X740 | 2WD 2-wheel steer |
John Deere X750 Engine | |
|---|---|
24HP Yanmar 993cc 3-cyl diesel | |
Fuel tank | 5.2 gal
19.7 L |
Engine details ...  | |
John Deere X750 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Internal wet disc brakes | |

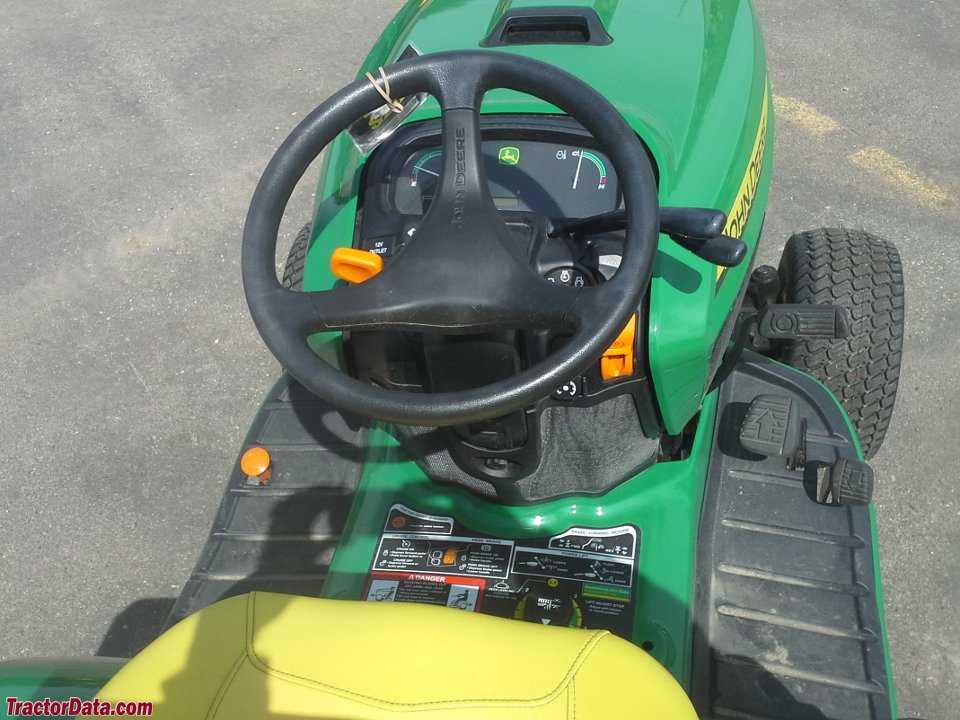

Open operator station with tilt-back seat. Optional hard cab. |
Photos | |
|---|---|
 | |
John Deere X750 photos...  |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
| 1-limited OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Rear PTO Type | 540 |
Front PTO | independent |
Clutch | electro-hydraulic |
Dimensions & Tires | |
|---|---|
Wheelbase | 54.5 inches
138 cm |
Weight | 948 lbs
430 kg |
Front tire | 18x8.50-8 |
Rear tire | 26x12-12 |
Full dimensions and tires ...  | |
John Deere X750 attachments | |
|---|---|
48" mid-mount mower deck | |
54" mid-mount mower deck | |
60" mid-mount mower deck | |
snowblower | |
Attachment details ...  |
X750 Serial Number Location | |
|---|---|
 | |
Serial number plate on the right side of the tractor frame, below the footrest. |
X750 Serial Numbers | |
|---|---|
2013 | 010001 |
2014 | 020001 |
2015 | 030001 |
2016 | 040001 |
2017 | 050001 |
2018 | 060001 |
2019 | 070001 |
2020 | 080001 |
2021 | 090001 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | regulated |
Charging amps | 40 |
Battery volts | 12 |
References | |
|---|---|
 | |
The Complete Range of Lawn Care Solutions published in 2016, by John Deere | |
Riding Lawn Tractors published in 2021, by John Deere | |
Riding Lawn Tractors published in 2022, by John Deere | |
Operator's Manual X750, X754, X758 (OMM166906) published in 2012 | |
Operator's Manual X750, X754, X758 (OMUC29404) published in 2021 | |
Signature Series published in 2013, by John Deere | |
Signature Series published in 2016, by John Deere | |
Signature Series published in 2018, by John Deere |
