Keck-Gonnerman 30-60 N

The Keck-Gonnerman 30-60 N is a tractor produced by Keck Gonnerman. It is equipped with a 665 ci 10.9 L engine. Transmission: 2 forward and 1 reverse. Operating weight: 10500 lbs 4762 kg.

Overview

	1928 - 1937 Standard-tread tractor

Production
Manufacturer	Keck-Gonnerman
Standard-tread tractor
Built in Mount Vernon, Indiana, USA

Keck-Gonnerman 30-60 Engine
LeRoi 10.9L 4-cyl kerosene
Engine details ...

Keck-Gonnerman 30-60 Transmission
2-speed gear
Transmission details ...

Keck-Gonnerman 30-60 Power
Drawbar (claimed)	30 hp 22.4 kW
Belt (claimed)	60 hp 44.7 kW
Plows	4 to 6 *14-inch

Mechanical
Two-wheel drive
Final drives	spur gear
Manual steering
Open operator station.

Dimensions & Tires
Weight	10500 lbs 4762 kg
Rear tire	56x14
Full dimensions and tires ...

Belt Pulley
Diameter	15.5 inches 39 cm
Width	9.5 inches 24 cm
RPM	666
Speed	2677 ft/min 815.95 meters/min

Engine

Engine Detail — 665 ci / 10.9 L Kerosene

Manufacturer	LeRoi
Fuel Type	Kerosene
Configuration	4-cylinder, liquid-cooled
Displacement	665 ci 10.9 L
Bore/Stroke	5.50x7.00 inches 140 x 178 mm
Starter type	hand-crank
	electric OptOptional

Transmission

Transmission — 2 forward and 1 reverse gear

Type	gear
Gears	2 forward and 1 reverse

Dimensions

Keck-Gonnerman 30-60 Tires
Ag rear	56x14 (steel)

Dimensions
Length	162 inches 411 cm
Width	90 inches 228 cm
Height	69 inches 175 cm
Weight	10500 lbs 4762 kg

Photos

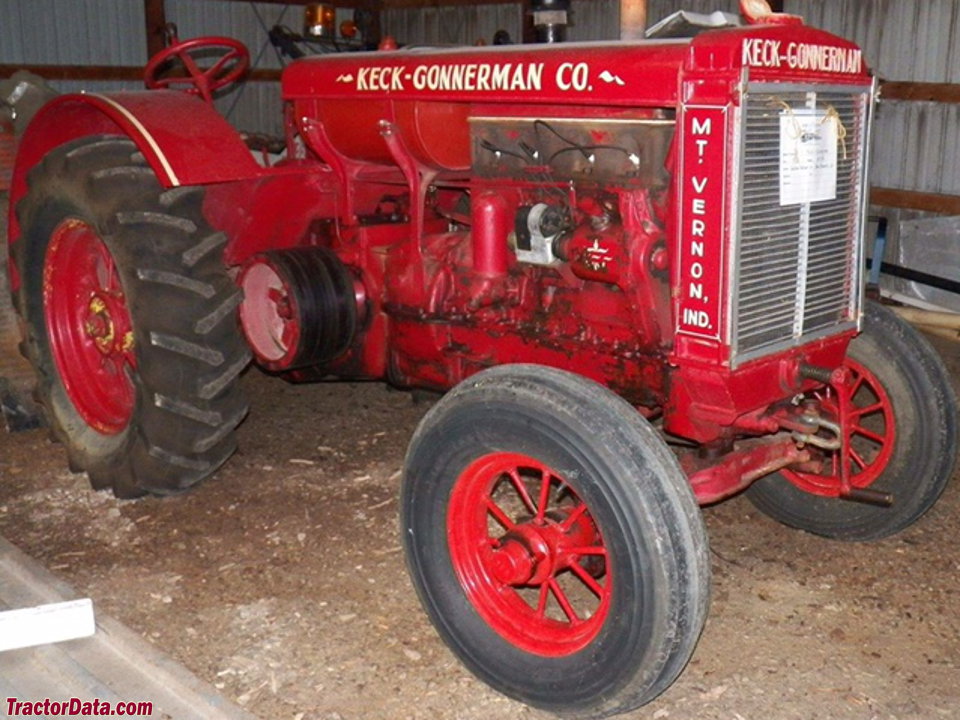

Keck-Gonnerman 30-60 N
