Kioti DK90
The Kioti DK90 is a tractor produced by Kioti. It is equipped with a 268.5 ci 4.4 L engine. The listed engine power is Diesel (gross): 91.2 hp / 68.0 kW. Transmission: 16 forward and reverse. Operating weight: 8,905 lbs 4039 kg.
Engine Power
Diesel (gross): 91.2 hp / 68.0 kW
Fuel & Capacities
33 gal
124.9 L
Transmission
16 forward and reverse
Operating Weight
8,905 lbs
4039 kg
Overview
 | 2007 - ???? | 2007 - ???? |
|---|
2007 - ???? |
|---|
Production | |
|---|---|
Manufacturer | Kioti (a part of Daedong) |
Built in Daegu, South Korea | |
Kioti DK90 Engine | |
|---|---|
Perkins 4.4L 4-cyl diesel | |
Fuel tank | 33 gal
124.9 L |
Engine details ...  | |
Kioti DK90 Transmission | |
|---|---|
16-speed synchronized shuttle | |
Transmission details ...  |
Kioti DK90 Power | |
|---|---|
Engine (gross) | 91.2 hp
68.0 kW |
PTO (claimed) | 78 hp
58.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | rear standard |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Cab standard with heat, air-conditioning, and radio with CD and iPod jack. | |
Hydraulics | |
|---|---|
Valves | 2 or 3 |
Pump flow | 12.8 gpm
48.4 lpm |
Total flow | 22.1 gpm
83.6 lpm |
Steering flow | 9.3 gpm
35.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 5,290 lbs
2399 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | ground/540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 90.7 inches
230 cm |
Weight | 8,905 lbs
4039 kg |
Front tire | 12.4x24 |
Rear tire | 18.4x34 |
Full dimensions and tires ...  | |
Engine
| 2007 - ???? | 2007 - ???? |
|---|
2007 - ???? |
|---|
Engine Detail — 268.5 ci / 4.4 L Diesel
Manufacturer | Perkins 1104D-44T |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled inline |
Displacement | 268.5 ci
4.4 L |
Power (gross) | 91.2 hp
68.0 kW |
Air cleaner | dry cartridge |
Pre-heating | glow plugs |
Rated RPM | 2200 |
Starter type | electric |
Transmission
| 2007 - ???? | 2007 - ???? |
|---|
2007 - ???? |
|---|
Transmission — 16 forward and reverse synchronized shuttle
Type | synchronized shuttle |
Gears | 16 forward and reverse |
 | |
Dimensions
| 2007 - ???? | 2007 - ???? |
|---|
2007 - ???? |
|---|
Kioti DK90 Tires | |
|---|---|
Ag front | 12.4x24 |
Ag rear | 18.4x34 |
Dimensions | |
|---|---|
Wheelbase | 90.7 inches
230 cm |
Length | 162.2 inches
411 cm |
Width | 78.7 inches
199 cm |
Height (cab) | 111 inches
281 cm |
Weight | 8,905 lbs
4039 kg |
Ground clearance | 19.5 inches
49 cm |
Front tread | 59.7 to 67.6 inches
151 to 171 cm |
Rear tread | 61.6 to 77.5 inches
156 to 196 cm |
Attachments
| 2007 - ???? | 2007 - ???? |
|---|
2007 - ???? |
|---|
Photos

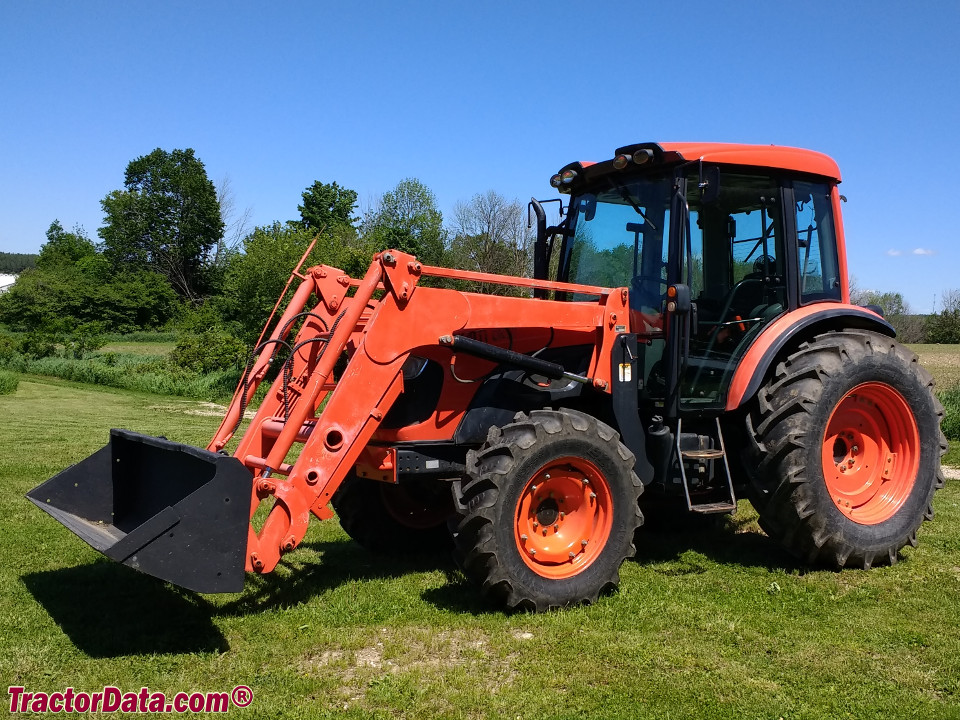

Kioti DK90
Recommended Implements & Sizing Guide
Engineering recommendations for Kioti DK90 based on its 91.2 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kioti DK90.
Estimated Continuous Field Runtime: 7 hrs
Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (33 gal / 124.9 L).
Estimated 75% Load Fuel Burn~4.7 gal/hr (18 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kioti DK90 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kioti DK90.
Converted Equivalents:
Horsepower (HP)91.2 hp
Kilowatts (kW)68 kW
Metric Horsepower (PS / CV)92.5 PS
