Kubota B1402

The Kubota B1402 is a tractor produced by Kubota. It is equipped with a 52.18 ci 0.9 L engine. The listed engine power is Diesel (listed): 13.8 hp / 10.3 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1100 lbs 498 kg.

Overview

	1981 - 1985 B02 SeriesSub-Compact Utility tractor B02 Series Sub-Compact Utility tractor

Production
Manufacturer	Kubota
Sub-Compact Utility tractor
Built in Japan

Variants
B1402E	2WD
B1402DT	4WD

Kubota B1402 Engine
Kubota 0.9L 3-cyl diesel
Engine details ...

Kubota B1402 Transmission
6-speed unsynchronized gear
Transmission details ...

Kubota B1402 Power
Engine	13.8 hp 10.3 kW

Mechanical
Two- or four-wheel drive
Manual steering
Open operator station.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/860/1000 (1.375)

Dimensions & Tires
Wheelbase	49.2 inches 124 cm
Weight	1100 lbs 498 kg
Front tire	5.00-12
Rear tire	8-16
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 52.18 ci / 0.9 L Diesel

Manufacturer	Kubota D850L
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	52.18 ci 0.9 L
Power	13.8 hp 10.3 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission — 6 forward and 2 reverse unsynchronized gear

Type	unsynchronized gear
Gears	6 forward and 2 reverse

Dimensions

Kubota B1402 Tires
Ag front	5.00-12
Ag rear	8-16

Dimensions
Wheelbase	49.2 inches 124 cm
Length	85.8 inches 217 cm
Width	41.3 inches 104 cm
Height	48.8 inches 123 cm
Weight	1100 lbs 498 kg
Ground clearance	9.2 inches 23 cm
Front tread	30.3 inches 76 cm
Rear tread	29.9 to 33.9 inches 75 to 86 cm

Photos

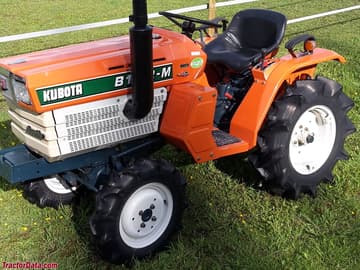

Kubota B1402-M. left side.

Kubota B1402-M, rear view.
