Kubota B1502
The Kubota B1502 is a tractor produced by Kubota. It is equipped with a 52.2 ci 0.9 L engine. The listed engine power is Diesel (listed): 14.8 hp / 11.0 kW. Transmission: 6 forward and 2 reverse.
Engine Power
Diesel (listed): 14.8 hp / 11.0 kW
Fuel & Capacities
Diesel
Transmission
6 forward and 2 reverse
Overview
 | 1981 - 1985
B02 SeriesSub-Compact Utility tractor
B02 Series
Sub-Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Sub-Compact Utility tractor | |
Built in Japan | |
Variants | |
|---|---|
B1502E | 2WD |
B1502DT | 4WD |
ZB1502 | Zennoh tractor |
Kubota B1502 Engine | |
|---|---|
Kubota 0.9L 3-cyl diesel | |
Engine details ...  |
Kubota B1502 Transmission | |
|---|---|
6-speed unsynchronized gear | |
Transmission details ...  |
Kubota B1502 Power | |
|---|---|
Engine | 14.8 hp
11.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Manual steering | |
Open operator station. |
Capacity | |
|---|---|
Front hubs | 0.5 qts
0.5 L |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/750/1000 |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 52.2 ci / 0.9 L Diesel
Manufacturer | Kubota D850 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 52.2 ci
0.9 L |
Bore/Stroke | 2.835x2.756 inches
72 x 70 mm |
Power | 14.8 hp
11.0 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 3.6 qts
3.4 L |
Transmission
Transmission — 6 forward and 2 reverse unsynchronized gear
Type | unsynchronized gear | ||
Gears | 6 forward and 2 reverse | ||
Oil capacity | 12.7 qts
12.0 L | ||
Oil type | 0o↔100oF [-17o↔37oC] : SAE 10W-30 | 0o↔100oF [-17o↔37oC] | : SAE 10W-30 |
0o↔100oF [-17o↔37oC] | : SAE 10W-30 | ||
0o↔100oF [-17o↔37oC] | : SAE 10W-30 | ||
 | |||
Dimensions
Kubota B1502 Tires |
|---|
Dimensions | |
|---|---|
Length | 98.5 inches
250 cm |
Width | 37.5 inches
95 cm |
Photos

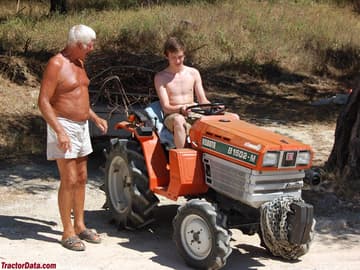

Kubota B1502M in Greece
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota B1502.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kubota B1502 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota B1502.
Converted Equivalents:
Horsepower (HP)14.8 hp
Kilowatts (kW)11 kW
Metric Horsepower (PS / CV)15 PS
