Kubota B1610
The Kubota B1610 is a tractor produced by Kubota. It is equipped with a 43.9 ci 0.7 L engine. The listed engine power is Diesel (net): 14.4 hp / 10.7 kW; Diesel (gross): 15.7 hp / 11.7 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1,151 lbs 522 kg.
Engine Power
Diesel (net): 14.4 hp / 10.7 kW; Diesel (gross): 15.7 hp / 11.7 kW
Fuel & Capacities
3.4 gal
12.9 L
Transmission
6 forward and 2 reverse
Operating Weight
1,151 lbs
522 kg
Overview
 | Super B SeriesSub-Compact Utility tractor |
|---|---|
Super B Series | |
Sub-Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Sub-Compact Utility tractor | |
Kubota B1610 Engine | |
|---|---|
Kubota 0.7L 3-cyl diesel | |
Fuel tank | 3.4 gal
12.9 L |
Engine details ...  | |
Kubota B1610 Transmission | |
|---|---|
6-speed | |
Transmission details ...  |
Kubota B1610 Power | |
|---|---|
Engine (gross) | 15.7 hp
11.7 kW |
Engine (net) | 14.4 hp
10.7 kW |
PTO (claimed) | 12.3 hp
9.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical |
Wet disc brakes | |
Tractor hitch | |
|---|---|
Rear Type | 1 |
Rear lift (at ends) | 1,190 lbs
539 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 (1.375) |
Mid PTO Type | 2545 |
Dimensions & Tires | |
|---|---|
Wheelbase | 50 inches
127 cm |
Weight | 1,151 lbs
522 kg |
Front tire | 5-12 |
Rear tire | 8-16 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 43.9 ci / 0.7 L Diesel
Manufacturer | Kubota D722 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 43.9 ci
0.7 L |
Power (net) | 14.4 hp
10.7 kW |
Power (gross) | 15.7 hp
11.7 kW |
Transmission
Transmission — 6 forward and 2 reverse
Gears | 6 forward and 2 reverse |
Dimensions
Kubota B1610 Tires | |
|---|---|
Ag front | 5-12 |
Ag rear | 8-16 |
Lawn/turf front | 20x8.00-10 |
Lawn/turf rear | 212/80D-15 |
Dimensions | |
|---|---|
Wheelbase | 50 inches
127 cm |
Length | 80.1 inches
203 cm |
Min Width | 36.5 inches
92 cm |
Height | 49.4 inches
125 cm |
Weight | 1,151 lbs
522 kg |
Ground clearance | 10.6 inches
26 cm |
Front tread | 30.2 inches
76 cm |
Rear tread | 28 to 40.6 inches
71 to 103 cm |
Photos

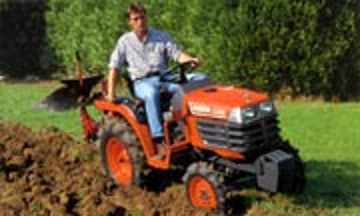

Kubota B1610 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota B1610.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kubota B1610 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota B1610.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
