Kubota B1-14

The Kubota B1-14 is a tractor produced by Kubota. It is equipped with a 52.18 ci 0.9 L engine. The listed engine power is Diesel (listed): 14 hp / 10.4 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1202 to 1213 pounds.

Engine Power
Diesel (listed): 14 hp / 10.4 kW
Fuel & Capacities
4.5 gal 17.0 L
Transmission
6 forward and 2 reverse
Operating Weight
1202 to 1213 pounds

Overview

Kubota B1-14 tractor photo
1985 - 1988 Bulltra SeriesSub-Compact Utility tractor Bulltra Series Sub-Compact Utility tractor
Production
Manufacturer
Kubota
Sub-Compact Utility tractor
Built in Japan
Variants
B1-14DT
4WD
Kubota B1-14 Engine
Kubota 0.9L 3-cyl diesel
Fuel tank
4.5 gal 17.0 L
Engine details ...
Kubota B1-14 Transmission
6-speed unsynchronized gear
Transmission details ...
Kubota B1-14 Power
Engine
14 hp 10.4 kW
Mechanical
Two- or four-wheel drive
Manual steering
Open operator station.
Tractor hitch
Rear Type
0
Power Take-off (PTO)
Rear PTO Type
540/860/1000 (1.375)
Dimensions & Tires
2WD Wheelbase
48.8 inches 123 cm
4WD Wheelbase
49 inches 124 cm
Weight
1202 to 1213 pounds
Front tire
4.50-10
2WD Rear tire
8-16
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 52.18 ci / 0.9 L Diesel

Manufacturer
Kubota D850
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
52.18 ci 0.9 L
Bore/Stroke
2.83x2.76 inches 72 x 70 mm
Power
14 hp 10.4 kW
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Transmission — 6 forward and 2 reverse unsynchronized gear

Type
unsynchronized gear
Gears
6 forward and 2 reverse
B1-14 unsynchronized gear speeds

Dimensions

Kubota B1-14 Tires
2WD Standard tires (ag)
Front: 4.50-10. Rear: 8-16
4WD Standard tires (ag)
Front: 5.00-12. Rear: 8-16
Dimensions
2WD Wheelbase
48.8 inches 123 cm
4WD Wheelbase
49 inches 124 cm
Length
84.6 inches 214 cm
Width
41.3 inches 104 cm
2WD Height
48.6 inches 123 cm
4WD Height
49 inches 124 cm
2WD Weight
1202 lbs 545 kg
4WD Weight
1213 lbs 550 kg
Ground clearance
9.3 inches 23 cm
2WD Front tread
28 inches 71 cm
4WD Front tread
30.3 inches 76 cm
Rear tread
31.9/35.4 inches 81/89 cm

Photos

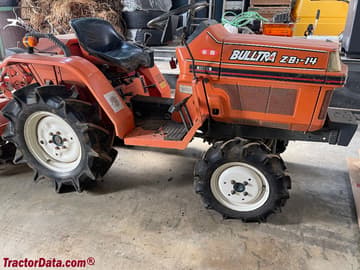

Zen-noh Kubota Bulltra ZB1-14, right side.

Zen-noh Kubota Bulltra ZB1-14, right side.

Kubota B1-14 Bulltra compact tractor, left side.

Kubota B1-14 Bulltra compact tractor, left side.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota B1-14.

Estimated Continuous Field Runtime: 6.2 hrs

Approximately 6.2 hours of continuous field operation at ~75% rated power on a full tank (4.5 gal / 17 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota B1-14 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota B1-14.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
