Kubota B2150

The Kubota B2150 is a tractor produced by Kubota. It is equipped with a 75.4 ci 1.2 L engine. The rated power output is 24 hp 17.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1711 to 1839 pounds.

Overview

	1988 - 1996 B SeriesCompact Utility tractor
1988 - 1996
B Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
B2150DT	4WD

Kubota B2150 Engine
Kubota 1.2L 4-cyl diesel
Engine details ...

Kubota B2150 Power
Engine (gross)	24 hp 17.9 kW
Gear PTO (claimed)	20 hp 14.9 kW
Hydro PTO (claimed)	18 hp 13.4 kW

Mechanical
Two- or four-wheel drive
Steering	manual
	power OptOptional
Dry disc brakes
Two-post ROPS.

Capacity
Fuel	7.4 gal 28.0 L
Hydraulic system	4.75 gal 18.0 L

Hydraulics
Type	open center
Capacity	4.75 gal 18.0 L
Pump flow	7.4 gpm 28.0 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift	1014 lbs 459 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540
Mid PTO	standard
Front PTO	optional

Dimensions & Tires
Wheelbase	63 inches 160 cm
Weight	1711 to 1839 pounds
Front tire	4.00-12
2WD Rear tire	8.3-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Backhoes published in 1992, by Kubota
Backhoes published in 1994, by Kubota
Mid-Mount Mowers B/L Series published in 1994, by Kubota*
Front Loaders published in 1988, by Kubota
Front Loaders B, L and M-Series published in 1994, by Kubota*
B1550/B1750/B2150 published in 1989, by Kubota
Product Catalog published in 1990, by Kubota
*Publication contains known errors.

Engine

Engine Detail — 75.4 ci / 1.2 L Diesel

Manufacturer	Kubota
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	75.4 ci 1.2 L
Bore/Stroke	2.95x2.76 inches 75 x 70 mm
Power (gross)	24 hp 17.9 kW
Rated RPM	2600
Starter volts	12
Oil change	100 h
Coolant capacity	4.1 qts 3.9 L

Transmission

Transmission options
9-speed sliding gear
hydrostatic

Transmission — 9 forward and 3 reverse sliding gear

Type	sliding gear
Gears	9 forward and 3 reverse

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

Kubota B2150 Tires
2WD Standard tires (ag)	Front: 4.00-12. Rear: 8.3-24
4WD Standard tires (ag)	Front: 6.00-12. Rear: 12.4-16

Dimensions
Wheelbase	63 inches 160 cm
Length	109.4 inches 277 cm
Width	44.7 inches 113 cm
Height	76.8 inches 195 cm
Flange rear axle
2WD Front tread	32.7 inches 83 cm
4WD Front tread	35.4 inches 89 cm

Kubota B2150 Weight
2WD gear Shipping	1711 lbs 776 kg
4WD gear Shipping	1828 lbs 829 kg
2WD hydro Shipping	1722 lbs 781 kg
4WD hydro Shipping	1839 lbs 834 kg

Attachments

Attachment overview
60" mid-mount mower deck
72" mid-mount mower deck
Front-end loader
Backhoe

Kubota BL4520B Backhoe
Backhoe type	Kubota BL4520B Backhoe
Transport height	59.4 inches 150 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	80.9 inches 205 cm
Reach from pivot	97 inches 246 cm
Loading height	59.7 inches 151 cm
Bucket Rotation	164°
Swing Arc	180°
Bucket force	2700 lbs 1224 kg
Dipperstick force	1340 lbs 607 kg

Kubota L4530B Backhoe
Backhoe type	Kubota L4530B Backhoe
Transport height	71.2 inches 180 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	96 inches 243 cm
Reach from pivot	112 inches 284 cm
Loading height	70.8 inches 179 cm
Bucket Rotation	194°
Swing Arc	180°
Bucket force	2890 lbs 1310 kg
Dipperstick force	1645 lbs 746 kg

Kubota BL4590 Backhoe
Backhoe type	Kubota BL4590 Backhoe
Transport height	79 inches 200 cm
Bucket width	13 inches 33 cm
	18 inches 45 cm
	24 inches 60 cm
	30 inches 76 cm
	36 inches 91 cm
Digging depth	90.2 inches 229 cm
Reach from pivot	116.5 inches 295 cm
Loading height	78.9 inches 200 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2950 lbs 1338 kg
Dipperstick force	1740 lbs 789 kg

Photos

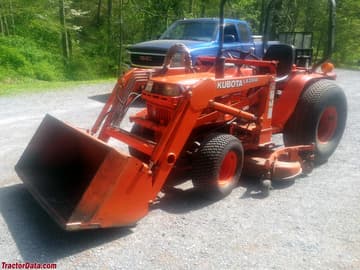

Kubota B2150 with LA350A front-end loader.

Kubota B2150 operator station and controls.
