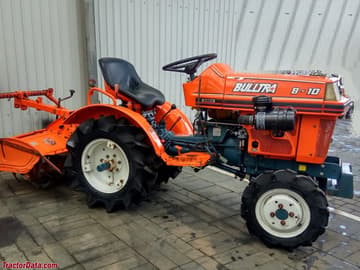

Kubota B-10 Bulltra

The Kubota B-10 Bulltra is a tractor produced by Kubota. The listed engine power is Diesel (listed): 10 hp / 7.5 kW. Transmission: 6 forward and 2 reverse.

Engine Power

Diesel (listed): 10 hp / 7.5 kW

Fuel & Capacities

Diesel

Transmission

6 forward and 2 reverse

Overview

	1985 - 1992 Sub-Compact Utility tractor

Production
Manufacturer	Kubota
Sub-Compact Utility tractor

Kubota B-10 Engine
Kubota 2-cyl diesel
Engine details ...

Kubota B-10 Transmission
6-speed gear
Transmission details ...

Kubota B-10 Power
Engine	10 hp 7.5 kW

Mechanical
Four-wheel drive
Open operator station.

Dimensions & Tires
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — Diesel

Manufacturer	Kubota
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Power	10 hp 7.5 kW
Starter	electric
Starter volts	12

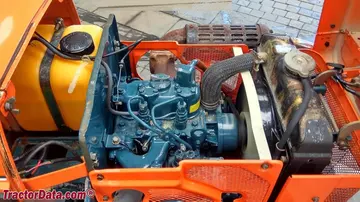

Kubota B-10 Engine

Image courtesy of Agro Engineering

Transmission

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Three speeds, plus reverse, in two ranges.

Dimensions

Kubota B-10 Tires

Dimensions

Photos

Kubota B-10 Bulltra

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota B-10 Bulltra.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
