Kubota GL-43

The Kubota GL-43 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 43 hp 32.1 kW. Transmission: 16 forward and reverse. Operating weight: 3527 to 3880 pounds.

Overview

	1991 - 1995 GL SeriesCompact Utility tractor
1991 - 1995
GL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota GL-43 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank	13.2 gal 50.0 L
Engine details ...

Kubota GL-43 Transmission
16-speed
Transmission details ...

Kubota GL-43 Power
Engine	43 hp 32.1 kW

Mechanical
Four-wheel drive
Power steering
Two-post ROPS. Cab optional.

Tractor hitch
Rear Type	JIS1

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	578@2700
	781@2700
	950@2700
	1249@2700
	-781@2700

Dimensions & Tires
Wheelbase	72.8 inches 184 cm
Weight	3527 to 3880 pounds
Front tire	8-18
Rear tire	13.6-26
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Kubota D1503-TI
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Bore/Stroke	3.268x3.638 inches 83 x 92 mm
Power	43 hp 32.1 kW
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

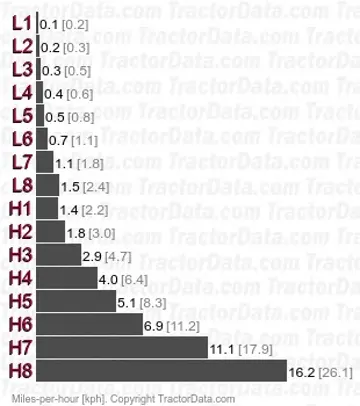

Transmission — 16 forward and reverse

Gears	16 forward and reverse

Dimensions

Kubota GL-43 Tires
Standard tires (ag)	Front: 8-18. Rear: 13.6-26

Dimensions
Wheelbase	72.8 inches 184 cm
Length	137.6 inches 349 cm
Width	58.3 inches 148 cm
Height (ROPS)	78 inches 198 cm
Height (cab)	78.4 inches 199 cm
ROPS Weight	3527 lbs 1599 kg
Cab Weight	3880 lbs 1759 kg
Ground clearance	14.2 inches 36 cm
Front tread	47.4 inches 120 cm
Rear tread	44.9 to 60.2 inches 114 to 152 cm

Photos

Kubota GL-43 tractor photo
