Kubota L1-385
The Kubota L1-385 is a tractor produced by Kubota. It is equipped with a 132.1 ci 2.2 L engine. The rated power output is 38 hp 28.3 kW. Transmission: 16 forward and 15 reverse. Operating weight: 3594 to 3814 pounds.
Engine Power
38 hp
28.3 kW
Fuel & Capacities
12.2 gal
46.2 L
Transmission
16 forward and 15 reverse
Operating Weight
3594 to 3814 pounds
Kubota L1-385 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1987 - 1991
L1 SeriesCompact Utility tractor |
|---|---|
1987 - 1991 | |
L1 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
L1-385D | 4WD |
L1-385DN | loader-compatible |
Kubota L1-385 Engine | |
|---|---|
Kubota 2.2L 5-cyl diesel | |
Fuel tank | 12.2 gal
46.2 L |
Engine details ...  | |
Kubota L1-385 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
Kubota L1-385 Power | |
|---|---|
Engine | 38 hp
28.3 kW |
PTO (claimed) | 36.7 hp
27.4 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Four-post ROPS. |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 544@2600 |
714@2600 | |
912@2600 | |
1196@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 76.6 inches
194 cm |
Weight | 3594 to 3814 pounds |
Front tire | 5.50-16 |
2WD Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator Manual L1 (30810-1921-4) |
Engine
Engine Detail — 132.1 ci / 2.2 L Diesel
Manufacturer | Kubota F2202 |
Fuel Type | Diesel |
Configuration | 5-cylinder, liquid-cooled inline |
Displacement | 132.1 ci
2.2 L |
Bore/Stroke | 3.23x3.23 inches
82 x 82 mm |
Power | 38 hp
28.3 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |

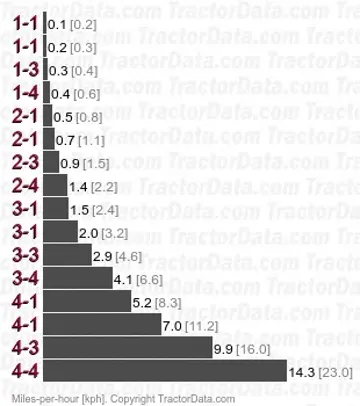

Transmission
Transmission — 16 forward and 15 reverse
Gears | 16 forward and 15 reverse |
Four gears in four ranges with shuttle shift. | |
 | |
Dimensions
Kubota L1-385 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 5.50-16. Rear: 12.4-28 |
4WD Standard tires (ag) | Front: 8-16. Rear: 12.4-28 |
Dimensions | |
|---|---|
Wheelbase | 76.6 inches
194 cm |
Length | 140 inches
355 cm |
Width | 60.6 inches
153 cm |
Height (ROPS) | 84.5 inches
214 cm |
2WD Weight | 3594 lbs
1630 kg |
4WD Weight | 3814 lbs
1730 kg |
2WD Ground clearance | 14 inches
35 cm |
4WD Ground clearance | 13.4 inches
34 cm |
2WD Front tread | 44.9 to 57.5 inches
114 to 146 cm |
4WD Front tread | 47.2 inches
119 cm |
Rear tread | 45.3 to 63.4 inches
115 to 161 cm |
Photos
Kubota L1-385 tractor photo
