Kubota L1-435
The Kubota L1-435 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 43 hp 32.1 kW. Transmission: 16 forward and reverse. Operating weight: 3153 to 3340 pounds.
Engine Power
43 hp
32.1 kW
Fuel & Capacities
12.2 gal
46.2 L
Transmission
16 forward and reverse
Operating Weight
3153 to 3340 pounds
Kubota L1-435 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1987 - 1991
L1 SeriesCompact Utility tractor |
|---|---|
1987 - 1991 | |
L1 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
L1-435D | Four-wheel drive |
Kubota L1-435 Engine | |
|---|---|
Kubota 1.5L 4-cyl diesel | |
Fuel tank | 12.2 gal
46.2 L |
Engine details ...  | |
Kubota L1-435 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
Kubota L1-435 Power | |
|---|---|
Engine | 43 hp
32.1 kW |
PTO (claimed) | 41.4 hp
30.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 545@2700 |
942@2700 | |
913@2700 | |
1242@2700 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 72.8 inches
184 cm |
Weight | 3153 to 3340 pounds |
Front tire | 6.00-16 |
2WD Rear tire | 13.6-26 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator Manual L1 (30810-1921-4) |
Engine
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Kubota V1512 |
Configuration | turbocharged intercooled diesel, 4-cylinder, liquid-cooled inline |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.00x3.23 inches
76 x 82 mm |
Power | 43 hp
32.1 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission

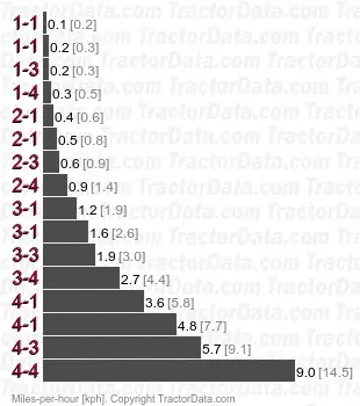

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears in four ranges with shuttle shift. | |
 | |
Dimensions
Kubota L1-435 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.00-16. Rear: 13.6-26 |
4WD Standard tires (ag) | Front: 8-18. Rear: 13.6-26 |
Dimensions | |
|---|---|
Wheelbase | 72.8 inches
184 cm |
Length | 136 inches
345 cm |
Width | 58.3 inches
148 cm |
Height (exhaust) | 77.6 inches
197 cm |
2WD Weight | 3153 lbs
1430 kg |
4WD Weight | 3340 lbs
1515 kg |
2WD Ground clearance | 14.6 inches
37 cm |
4WD Ground clearance | 13.2 inches
33 cm |
2WD Front tread | 44.9 to 57.5 inches
114 to 146 cm |
4WD Front tread | 47.2 inches
119 cm |
Rear tread | 44.9 to 60.2 inches
114 to 152 cm |
