Kubota L2502

The Kubota L2502 is a tractor produced by Kubota. It is equipped with a 100.5 ci 1.6 L engine. The rated power output is 24.0 hp 17.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 2601 to 2833 pounds.

Overview

	2022 - L02 Standard SeriesCompact Utility tractor
2022 -
L02 Standard Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor
Original price was $16,694 in 2023

Kubota L2502 Engine
Kubota 1.6L 3-cyl diesel
Fuel tank	11.1 gal 42.0 L
Engine details ...

Kubota L2502 Power
Engine (gross)	24.8 hp 18.5 kW
Engine (net)	24.0 hp 17.9 kW
Gear PTO (claimed)	20.5 hp 15.3 kW
Hydro PTO (claimed)	19 hp 14.2 kW

Mechanical
Two- or four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Pump flow	5.2 gpm 19.7 lpm
Steering flow	3.1 gpm 11.7 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	1874 lbs 850 kg
Rear lift (at 24"/610mm)	1389 lbs 630 kg

Power Take-off (PTO)
Gear Rear PTO	transmission
Hydro Rear PTO	independent
Clutch	overrunning dry disc (gear)
Rear PTO Type	540 (1.375)
Engine RPM	540@1910 (gear)
	540@2020 (hydro)

Dimensions & Tires
2WD Wheelbase	63.8 inches 162 cm
4WD Wheelbase	63.4 inches 161 cm
Weight	2601 to 2833 pounds
Front tire	5.00-15
2WD Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Charging volts	12
Gear Battery CCA	580
Hydro Battery CCA	600
Battery volts	12

References
L02 Series published in 2022, by Kubota

Engine

Engine Detail — 100.5 ci / 1.6 L Diesel

Manufacturer	Kubota
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	100.5 ci 1.6 L
Bore/Stroke	3.43x3.64 inches 87 x 92 mm
Power (net)	24.0 hp 17.9 kW
Power (gross)	24.8 hp 18.5 kW
Fuel system	direct injection
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

Transmission options
8-speed mechanical shuttle
hydrostatic

Transmission — 8 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	8 forward and reverse
Clutch	dry disc

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

Kubota L2502 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 11.2-24
4WD Standard tires (ag)	Front: 7.2-16. Rear: 11.2-24
2WD Lawn/turf front	23x8.50-12
4WD Lawn/turf front	25x8.50-14
Lawn/turf rear	13.6-16
4WD Industrial front	27x8.50-15
4WD Industrial front	29x9.50-15
4WD Industrial rear	15-19.5
4WD Industrial rear	43x16-20

Dimensions
2WD Wheelbase	63.8 inches 162 cm
4WD Wheelbase	63.4 inches 161 cm
2WD Length	110.6 inches 280 cm
4WD Length	108.5 inches 275 cm
Width	55.1 inches 139 cm
Height (ROPS)	91.7 inches 232 cm
2WD Ground clearance	13.6 inches 34 cm
4WD Ground clearance	13.4 inches 34 cm
2WD Front tread	41.3 inches 104 cm
4WD Front tread	43.1 inches 109 cm
Rear tread	43.9/47.1/50.8 inches 111/119/129 cm

Kubota L2502 Weight
2WD Gear	2601 lbs 1179 kg
4WD Gear	2811 lbs 1275 kg
4WD Hydro	2833 lbs 1285 kg

Attachments

Attachment overview
Front-end loader
Backhoe

Kubota BH77 Backhoe
Backhoe type	Kubota BH77 Backhoe
Transport height	80.3 inches 203 cm
2-Foot flat digging depth	89.8 inches 228 cm
Reach from pivot	124.3 inches 315 cm
Loading height	65.7 inches 166 cm
Bucket Rotation	180°

Photos

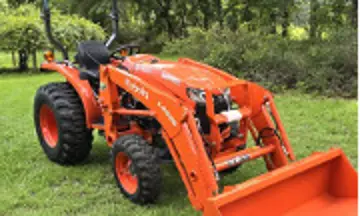

Kubota L2502 compact utility tractor with LA526 front-end loader.
